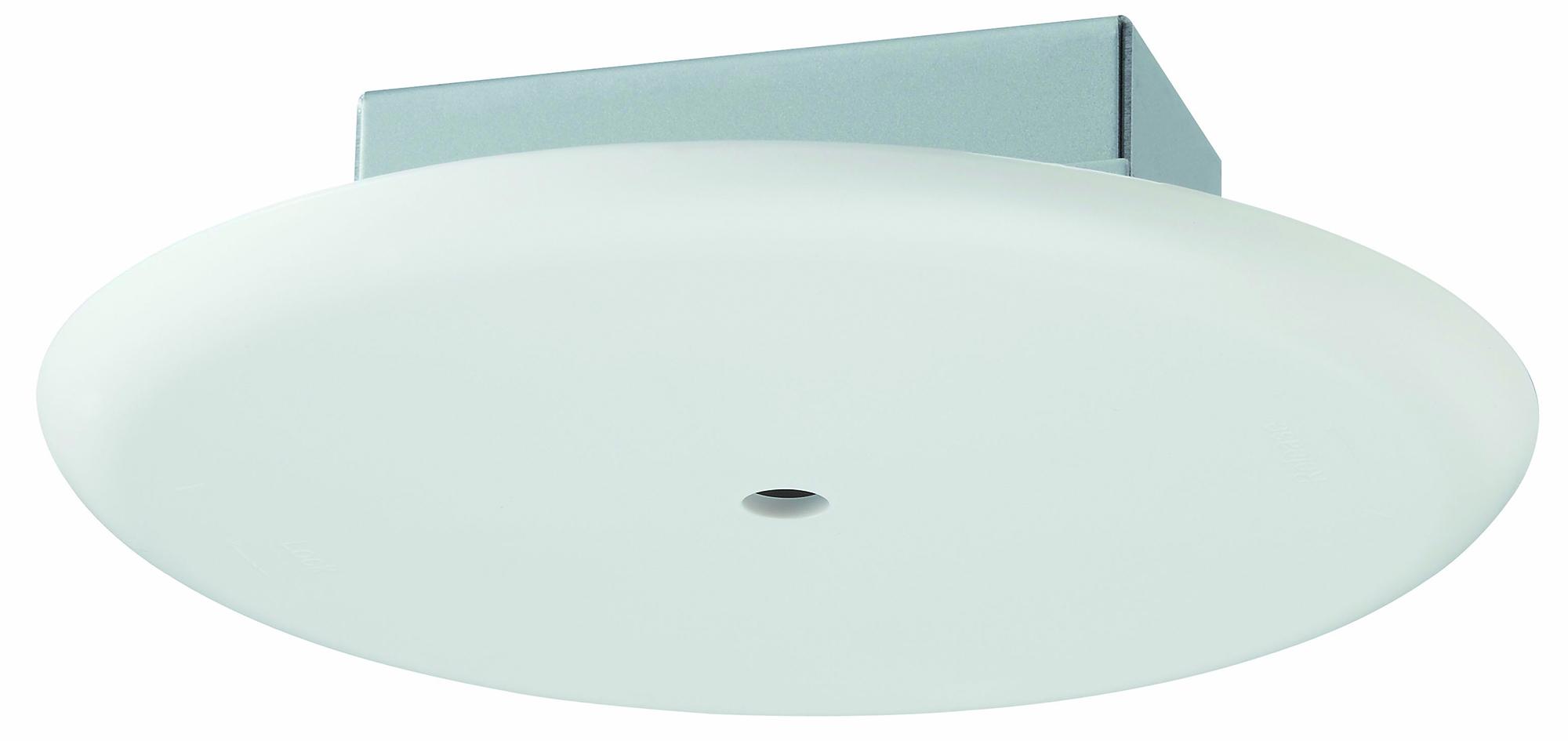

The TOA AN-9001 is an electret condenser microphone designed for use with the AN-001T Ambient Noise control module in the M-9000.
The AN9001 can be mounted in the ceiling or wall using an American standard single gang electrical box.
| Type | Electret condenser microphone |
| Phantom Power | 14-26 V DC |
| Current Consumption | 7 mA (at 24 V DC) |
| Directivity | Omnidirectional (hemispherical) |
| Impedance | 200 Ω |
| Rated Sensitivity | -5 dB (1 kHz, 0 dB = 1 V/Pa) |
| Frequency Response | 100-10,000 Hz |
| Output Terminal | Removable terminal block (3 pins) |
| Dimensions: | ø130 × 37 (D) mm |
| Weight: | 170g |
| Accessories: | Removable terminal plug (3 pins) × 1, Box mounting screw (No.6-32UNC x 30) × 2, Box mounting screw (M4 x 30) × 2 |
