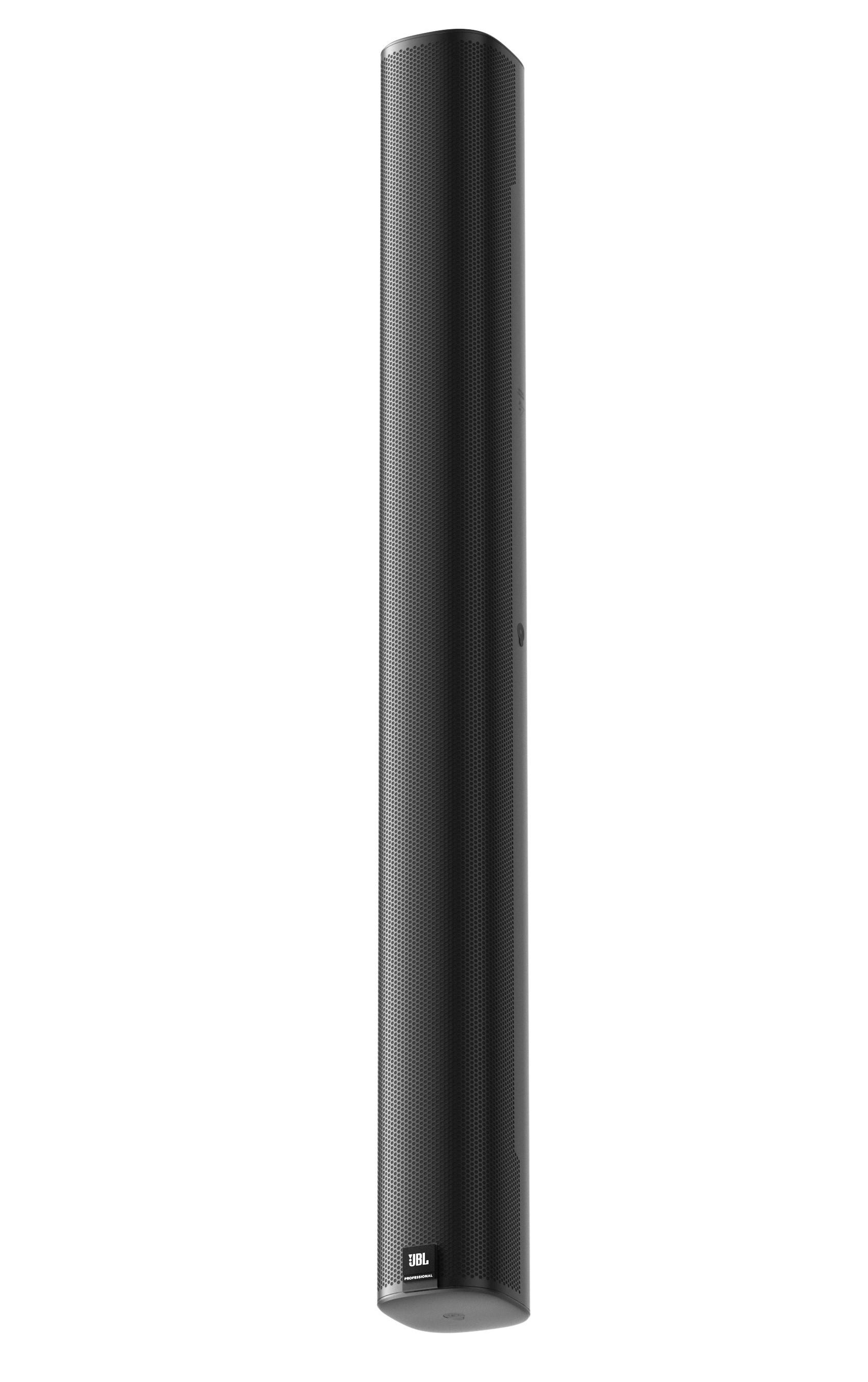

The JBL COL800 elegant 32-inch (800 mm) slim column loudspeaker provides wide horizontal and narrow vertical coverage, with a built-in 10° down-tilt providing optimum coverage for most listening areas while allowing the speaker to be installed flat to the wall. The slim, compact design—winner of international design awards for industrial design excellence—complements virtually any architectural décor.

The slim, compact design and high performance make it ideal for a wide variety of applications, such as conference/meeting rooms, lecture halls, retail stores, concourses, transit spaces & fill applications.

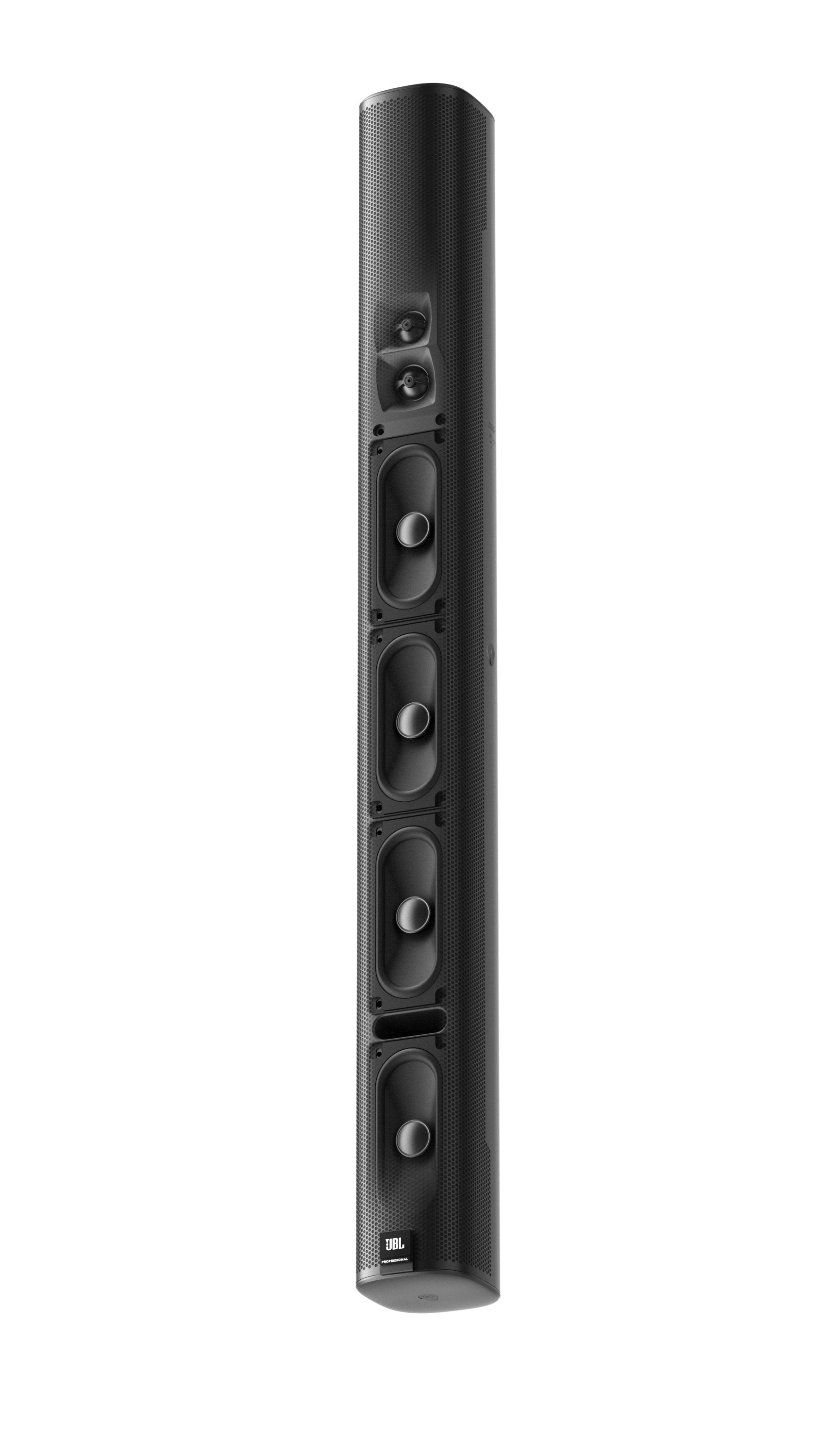

Four 5-inch x 2.25 inch racetrack woofers provide maximum radiating area in a column form factor. Dual tweeters are located at the top of the array for less obstructed coverage of the listening space and are aimed at a downwards angle enabling a down-tilted coverage even with the cabinet flat to the wall.

The shallow cabinet depth of 3.7 inches (93 mm) qualifies for ADA (Americans with Disabilities Act) projects when installed with the back of the cabinet flush to the wall.

The on-board 60-watt multi-tap transformer is compatible with either 70V or 100V distributed speaker lines, whilst the speaker is switchable for direct 8-ohm operation with power handling of 150W continuous (600W peak, 2 hrs.) The 85 Hz to 20 kHz frequency range delivers clean, clear sound for music or speech.

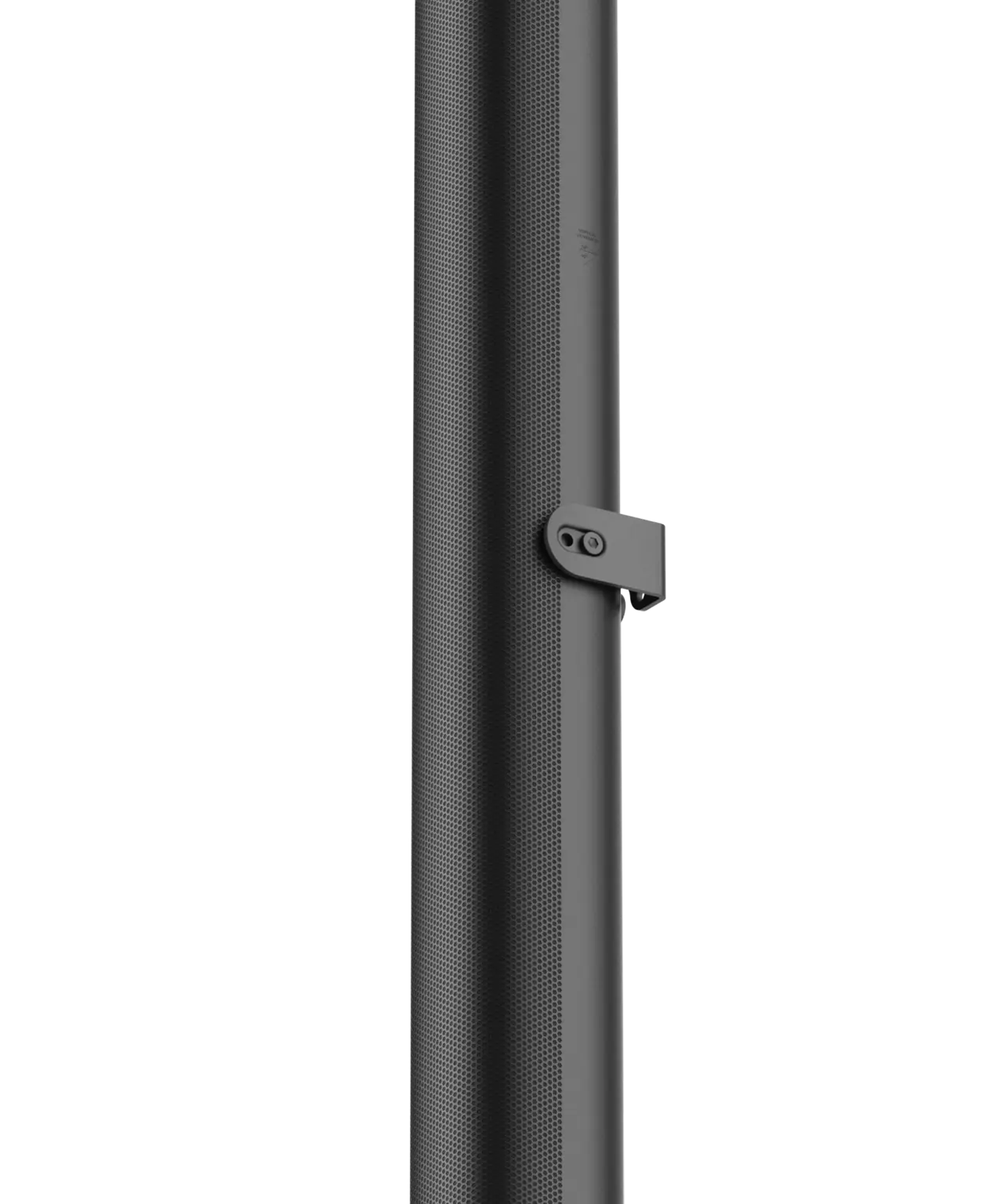

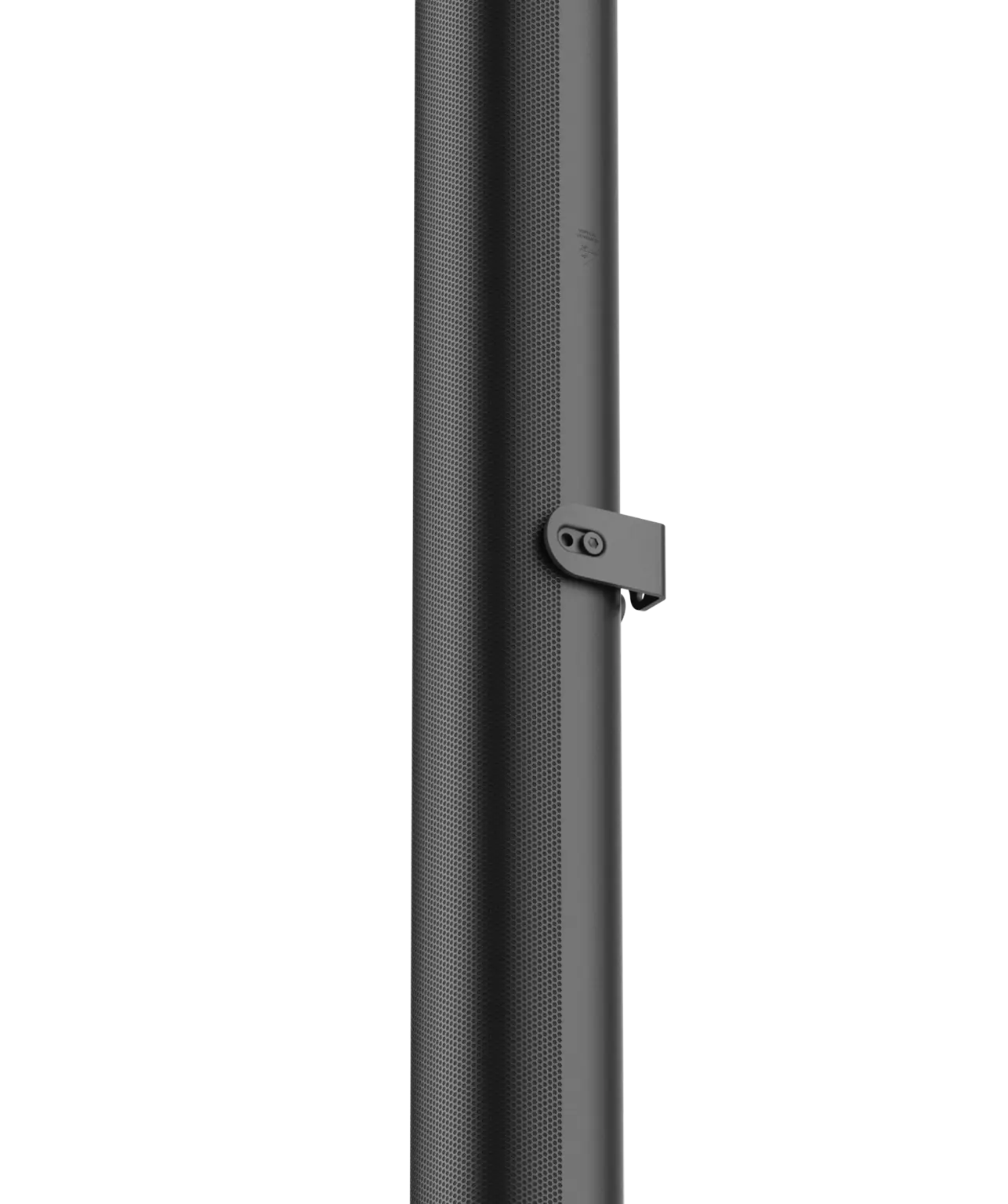

Two included L-brackets can be installed on the top and bottom or left and right sides to enable versatile installation. Both methods allow for close-to-the-wall installation.

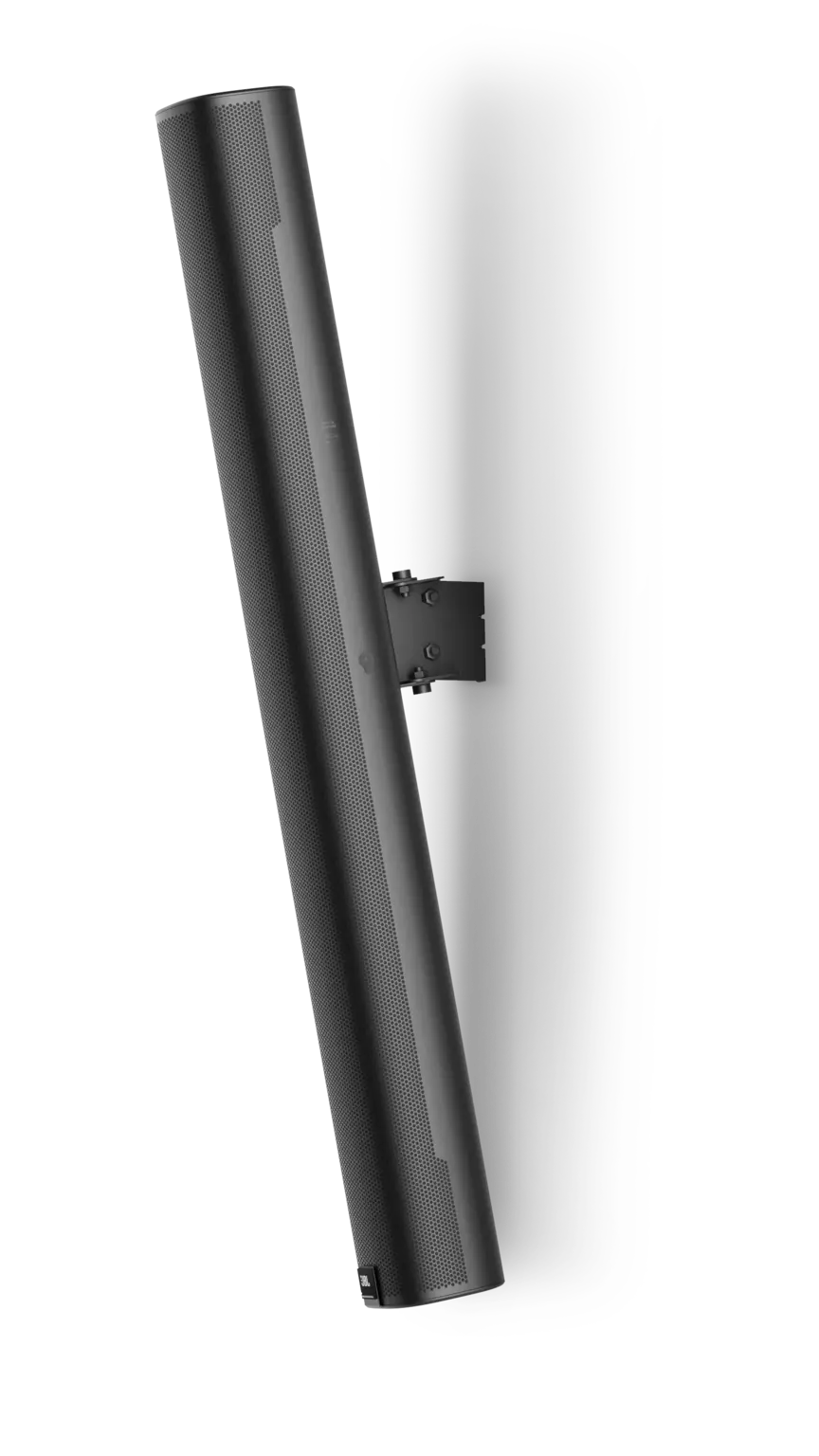

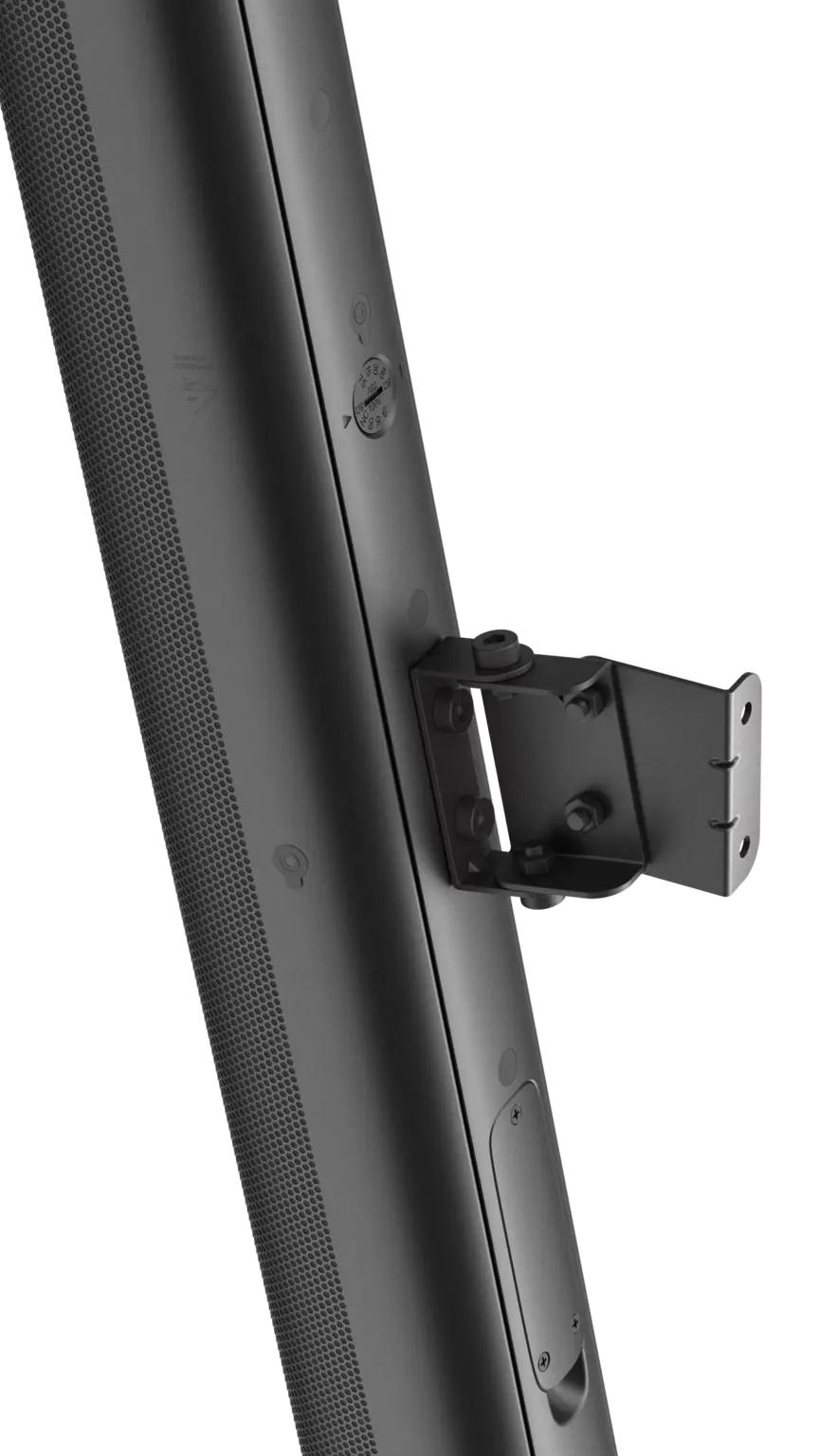

A low-profile swivel (pan) / tilt wall bracket is also included, for adding up to 10° down-tilt to the cabinet aiming (in addition to the built-in 10° down-tilt aim when the speaker is installed flat to the wall).

The COL800 has an IP54 rating (per IEC60529) for protection against ingress of dust or water. The drivers are water-treated, the grille has a water-backing, and a cover is included to protect the input terminals.

Available in black RAL9004 (COL800-BK) or white RAL9016 (COL800-WH).

• Four 5-inch x 2.25-inch (125 x 55 mm) racetrack woofers & two 0.8-inch (20 mm) tweeters
• 32 inches tall with shallow 3.7-inch (93 mm) cabinet depth
• Wide 160° horizontal and focused 60° vertical coverage
• 10° downward tilt covers most listening areas without physically tilting the cabinet
• 150W continuous pink noise power handling (600W peak)
• 85 Hz – 20 kHz frequency range
• Built-in 60W 70V/100V multi-tap transformer, plus 8 ohm direct input
• 116 dB peak SPL (110 dB continuous), 2 hrs
• Dual tweeters near top of column for unobstructed coverage of listening space
• Versatile mounting brackets included - both close-to-wall L-brackets and low-profile swivel(pan)/tilt wall bracket
• Warranty: 2 Years
