Cameo ROOT PAR BATTERY

Flat LED PAR Light | Mains & rechargeable battery operation | 5 x 4 W RGBW LEDs | 1000 lm | Adjustable PWM frequency | DMX / WDMX* Control | EZchase DMX delay chase effects | Silent, fanless cooling

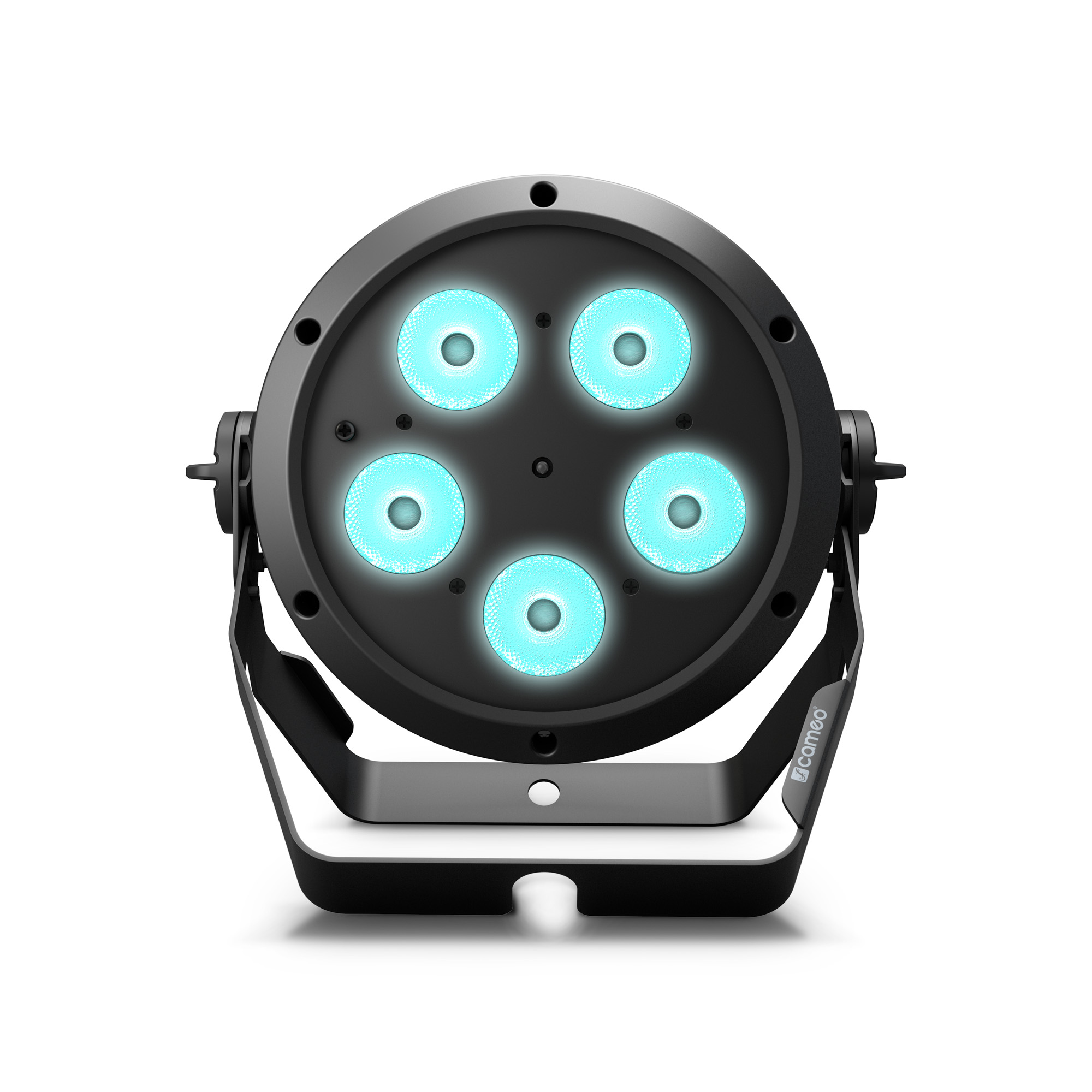

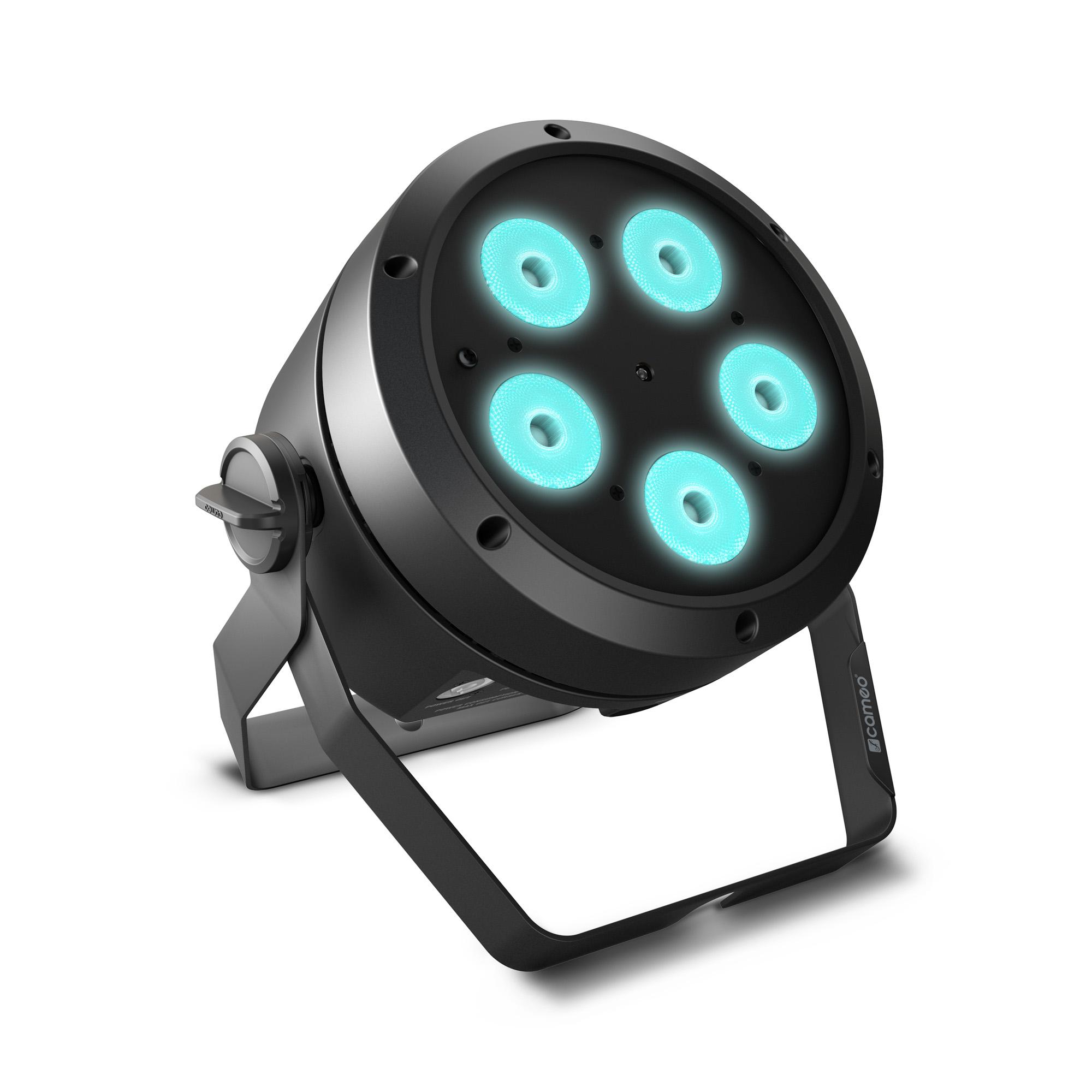

The Cameo ROOT PAR BATTERY is an LED PAR light fixture which can be powered from the mains or by its integrated rechargeable battery. It uses five 4 Watt RGBW LEDs, with a luminous flux of 1,000 lm, to create superb RGBW colour mixes and various white tones, with the white LED providing enhanced contrast, clearer colour boundaries and improved white and pastel colours.

With the ROOT PAR BATTERY, you no longer need to worry about the location of the nearest power supply when you arrive on site. If, however, mains power is close by, you can rely on a guaranteed clean and safe power supply with PowerCON®-compatible mains connections.

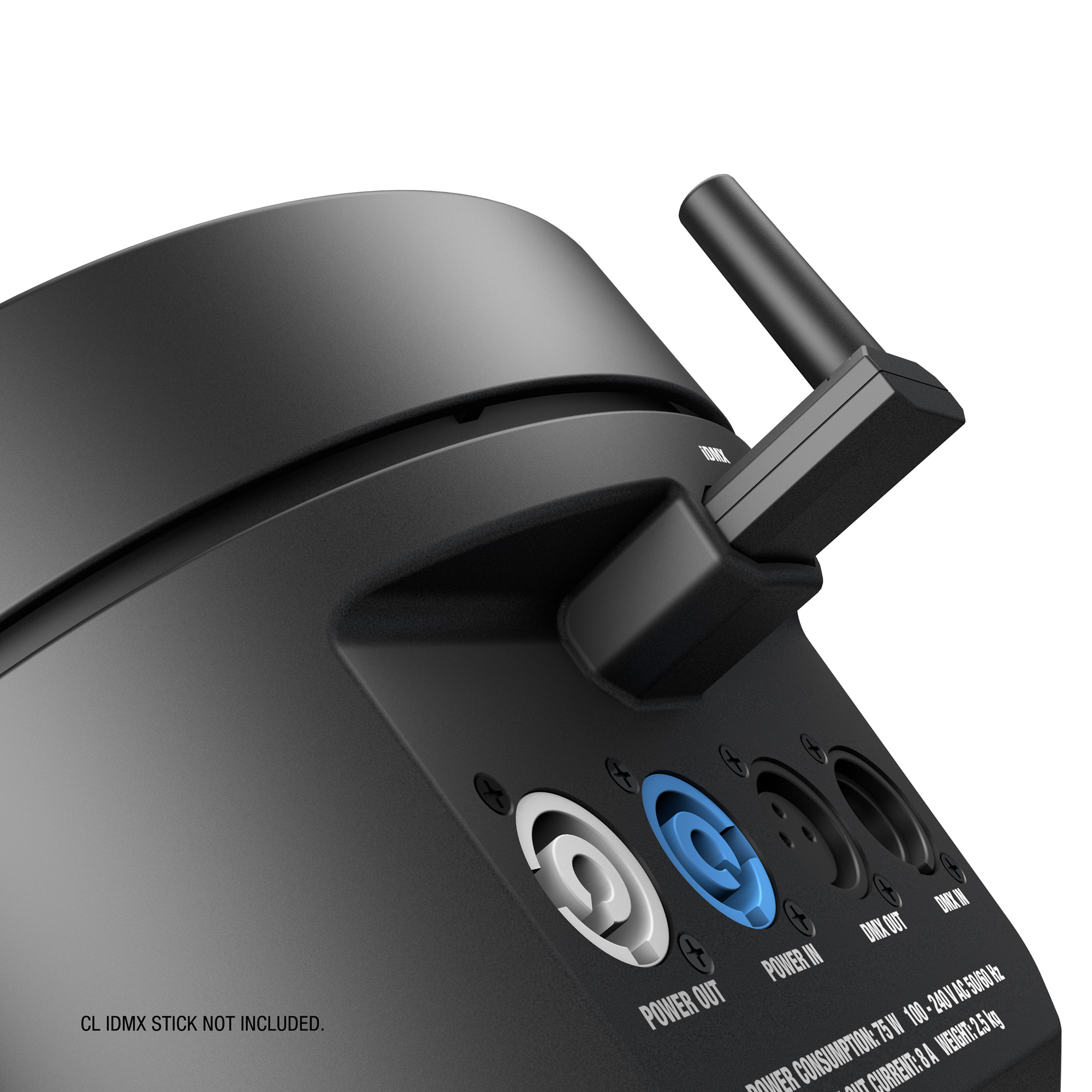

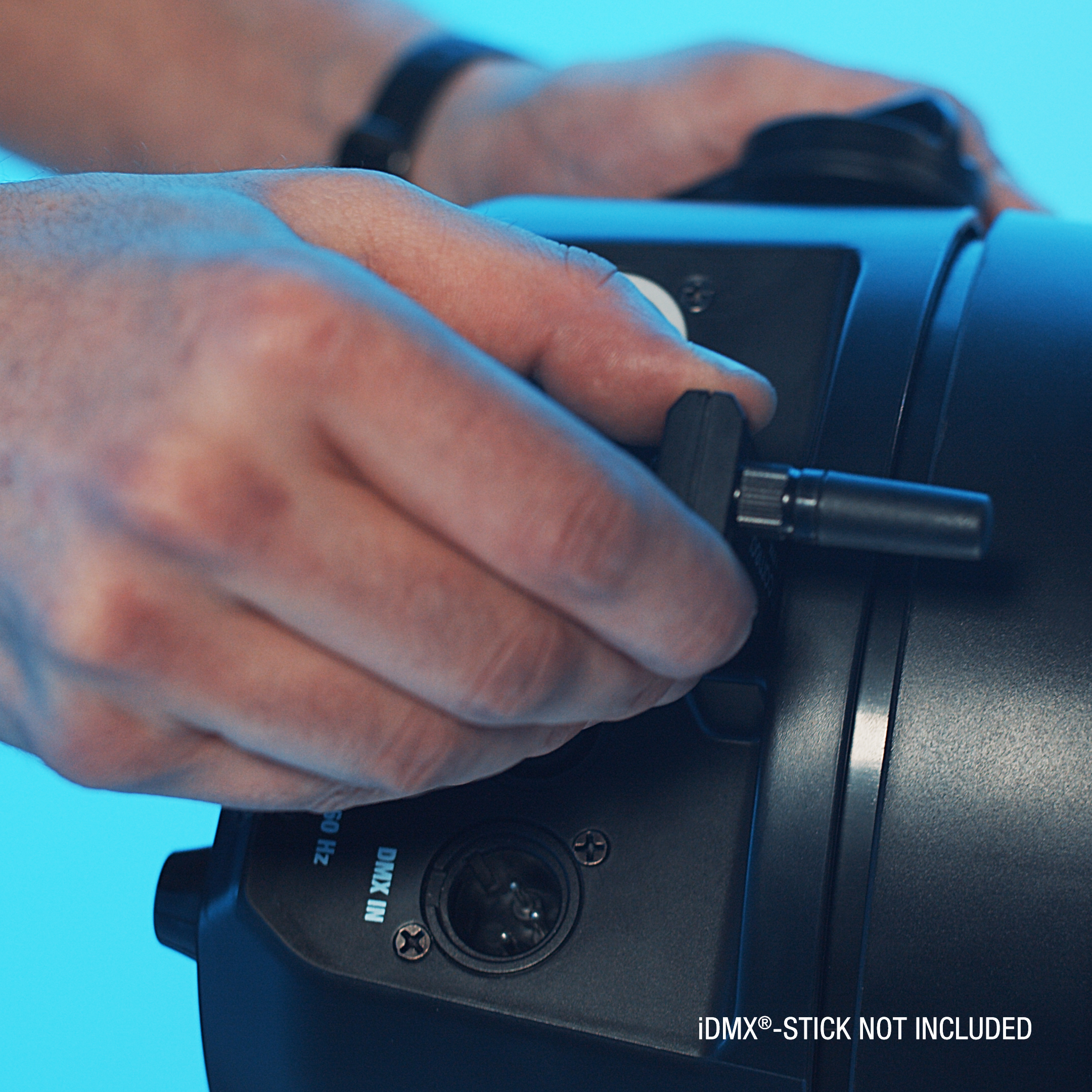

To keep cabling to a minimum, DMX connection can be made wirelessly using the optionally available iDMX® stick which simply plugs into the lighting fixtures’ USB socket to convert it to wireless DMX – something you would only normally expect from high-end spotlights. In addition to being controlled via DMX in master/slave or stand-alone mode and wireless control, the ROOT® PAR BATTERY can be used automatically and synchronized with the music using its built-in microphone.

This Cameo spotlight also features the unique, patented EZchase® DMX delay function. Simply daisy chain the lights then connect to the DMX signal from the first light to create fascinating, white and coloured running light patterns with minimal programming effort.

A strong light output of 1000 lm is delivered by 5 x 4 W RGBW LEDs, identical to the lighting used in other ROOT® PAR models. This enables you to combine different models from the series, whether they are connected to mains power, or batteries, are wired or based on W-DMX™, to create even more flexible set-ups. Perfect for musicians, DJs and lighting rental companies.

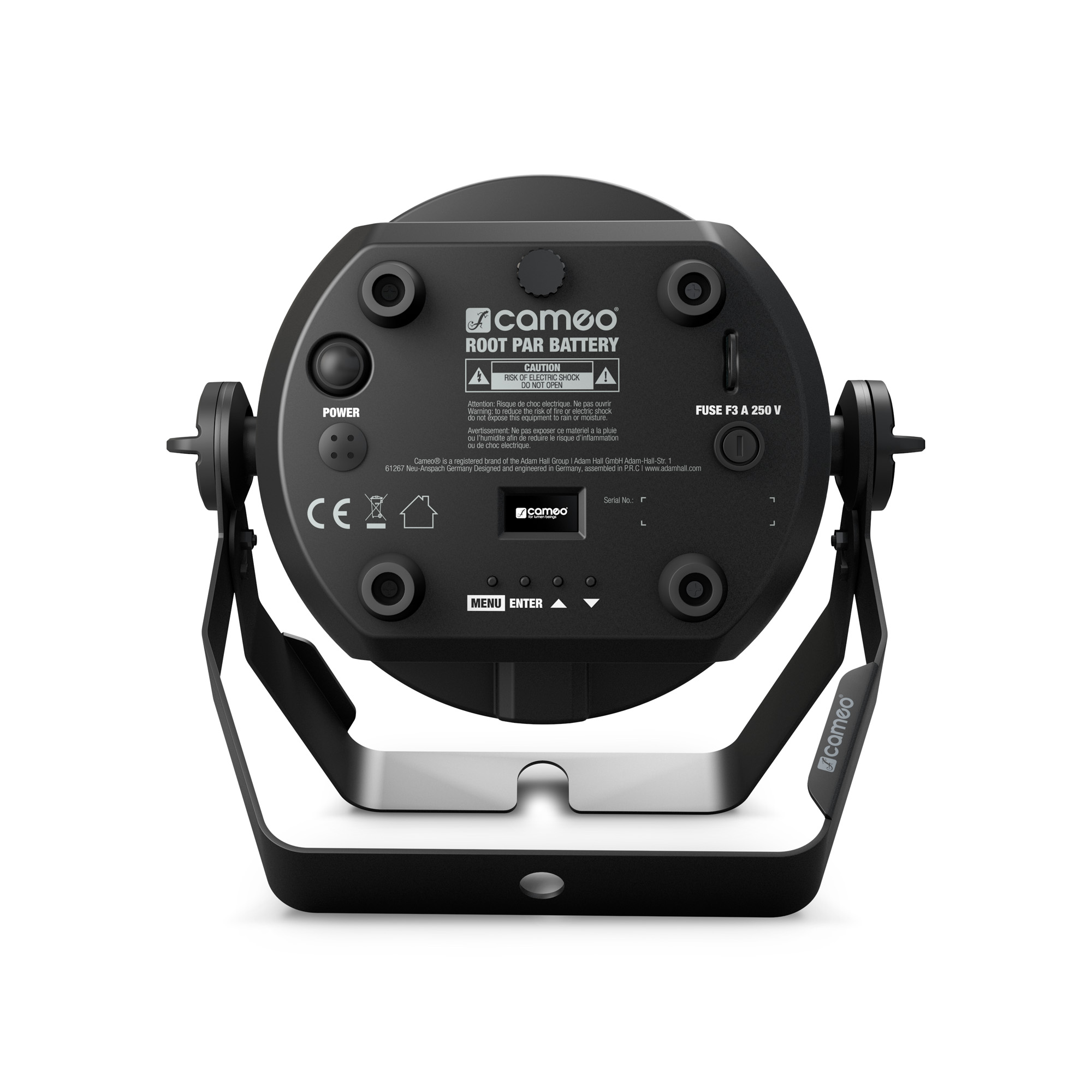

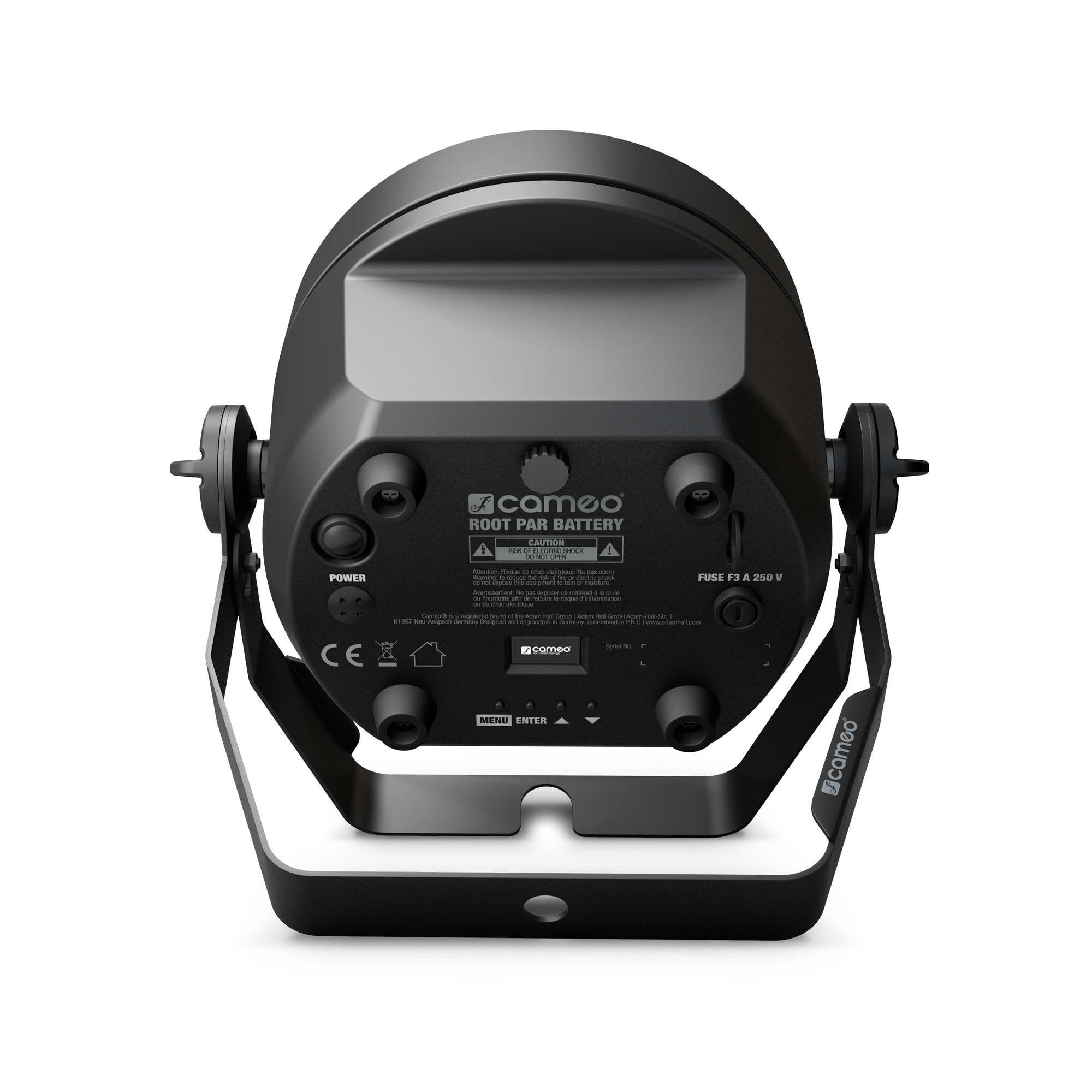

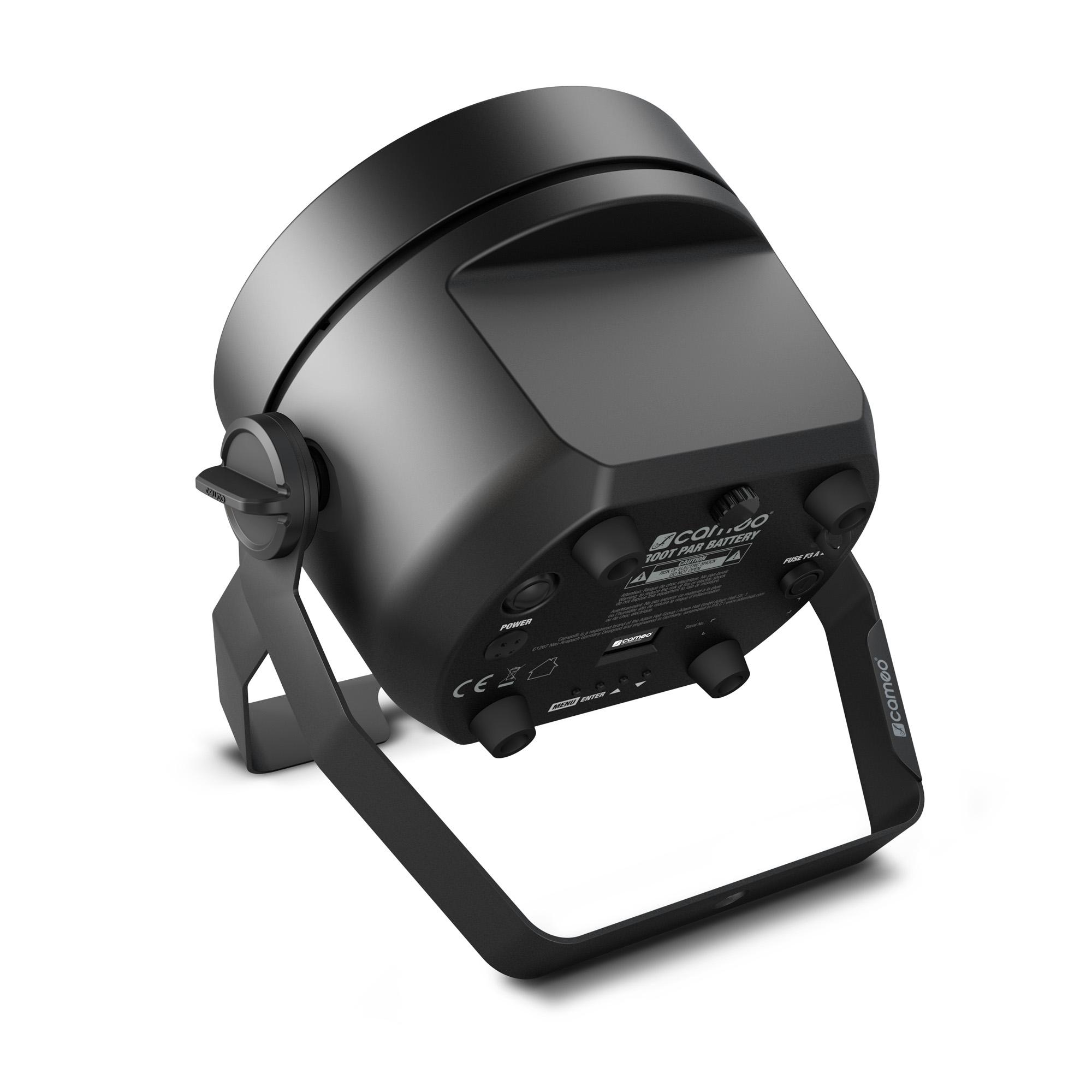

Colours and settings are easily adjustable via four buttons and the OLED display.

Alternatively, an optional IR remote control is also available separately. (CLPFLAT1REMOTE).

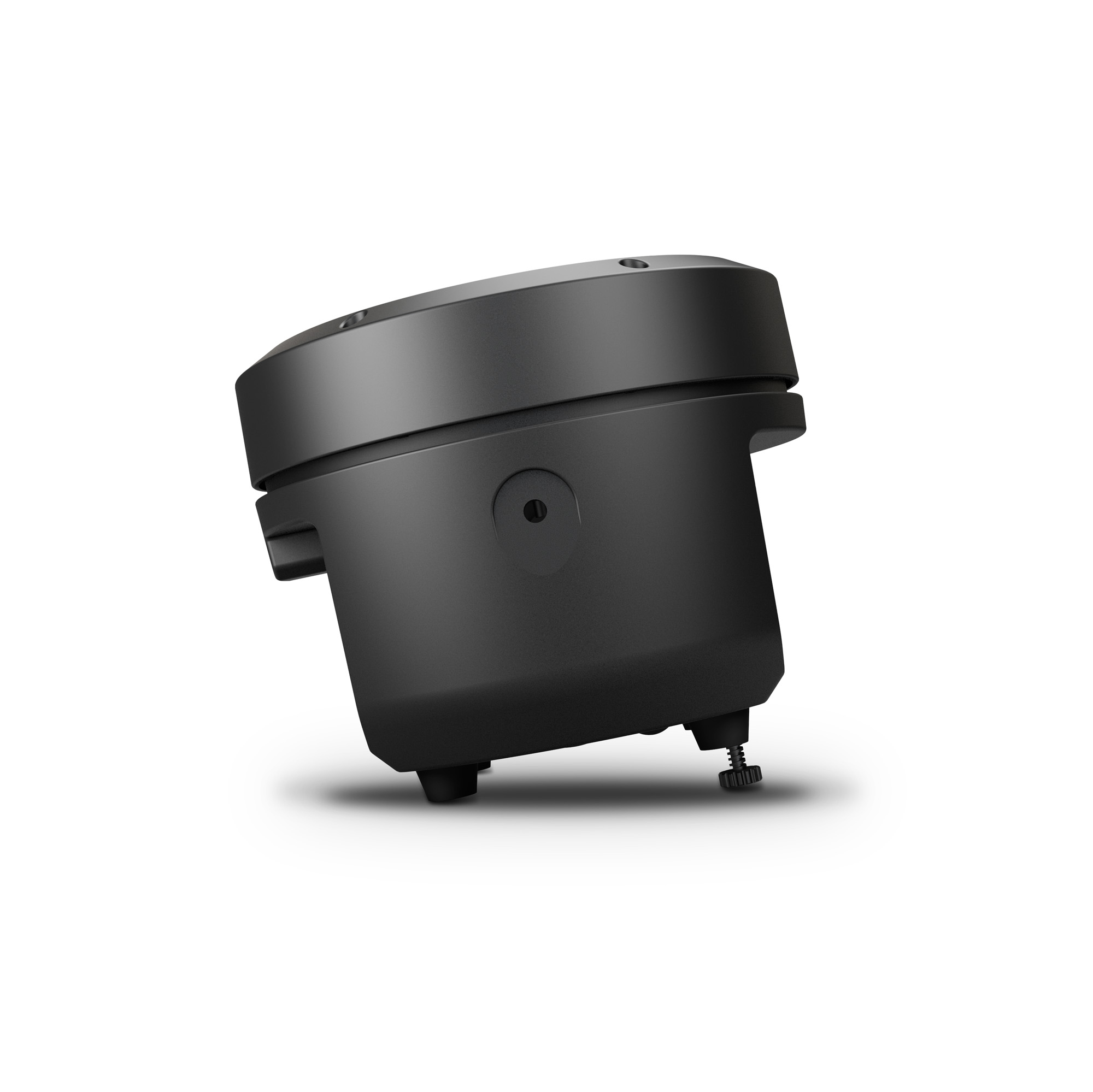

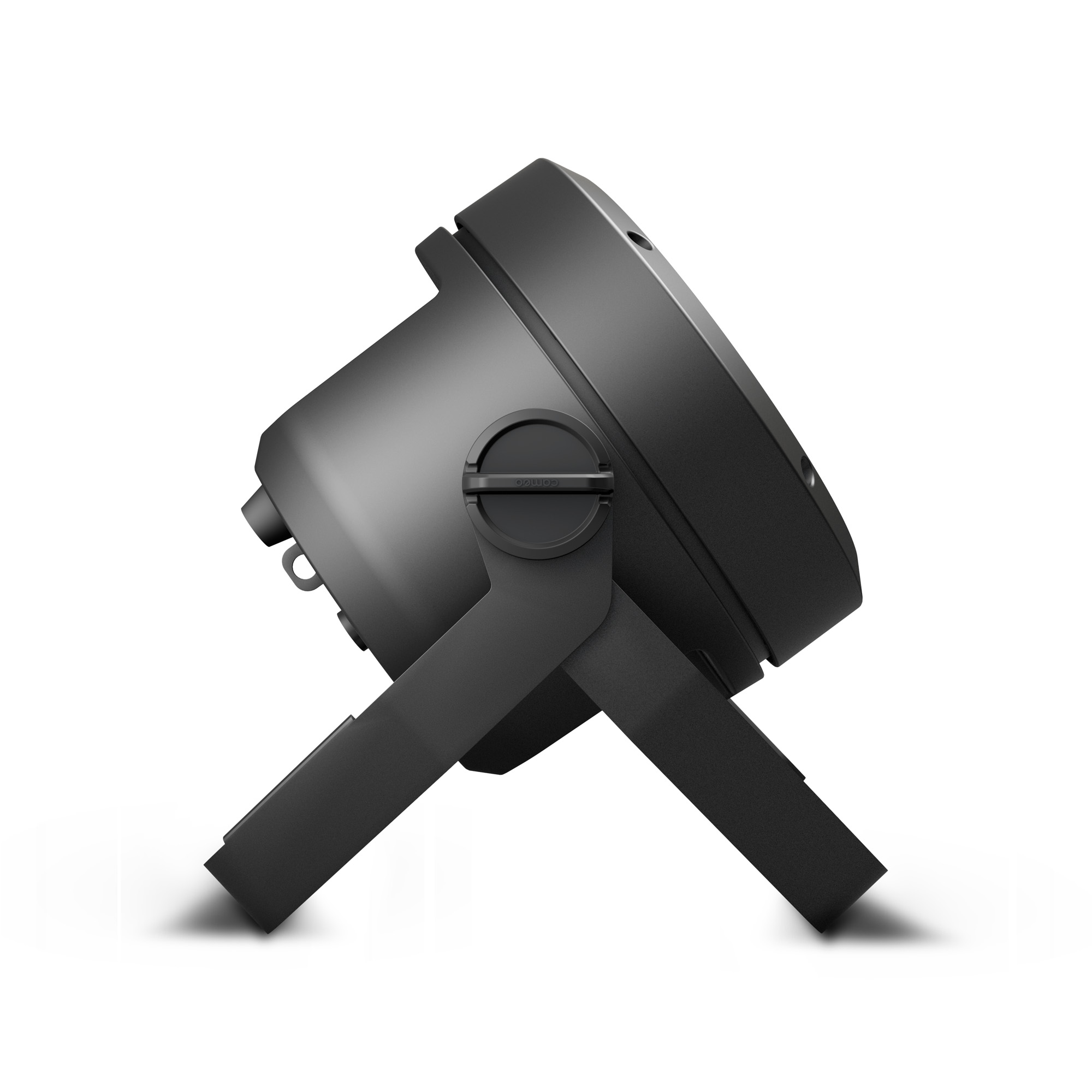

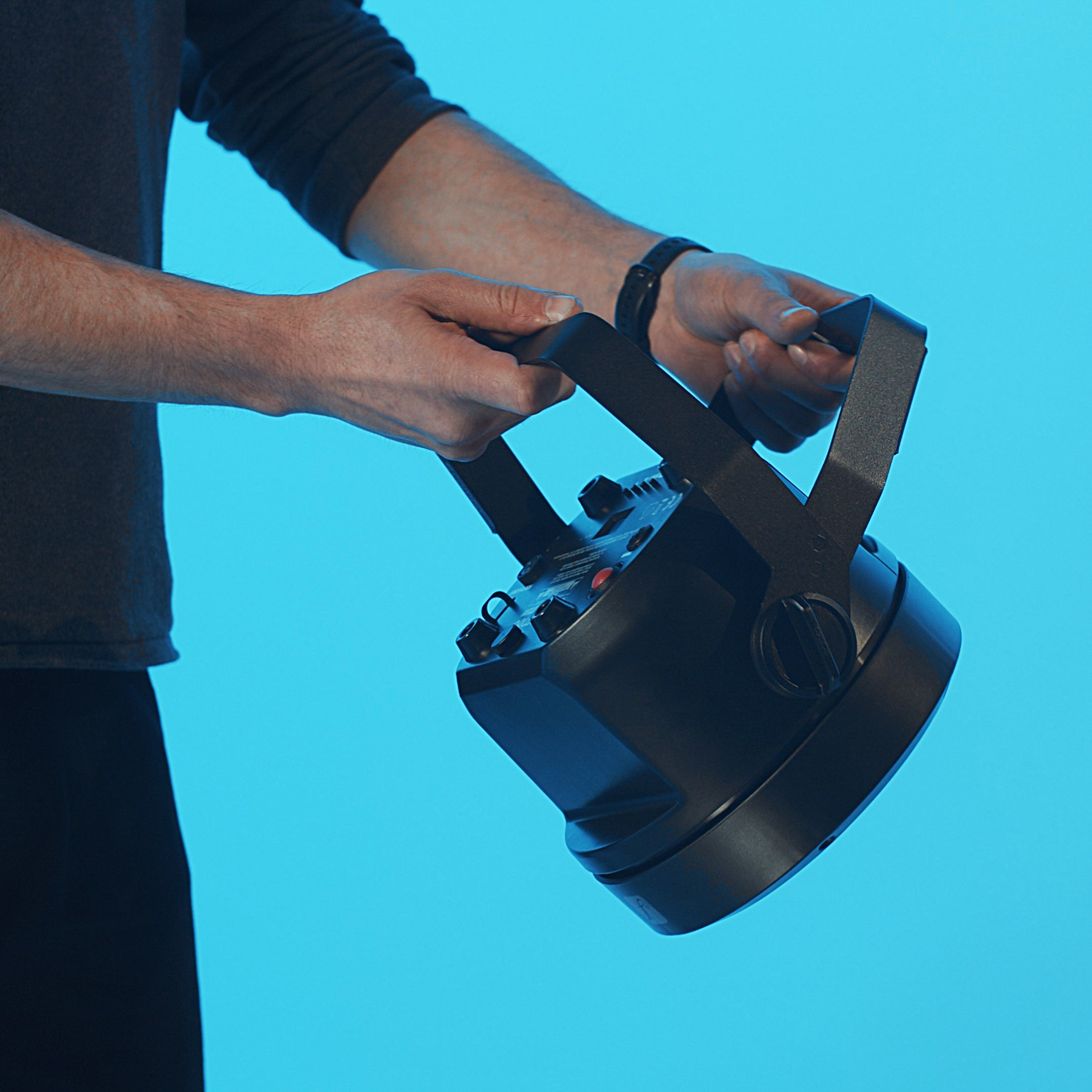

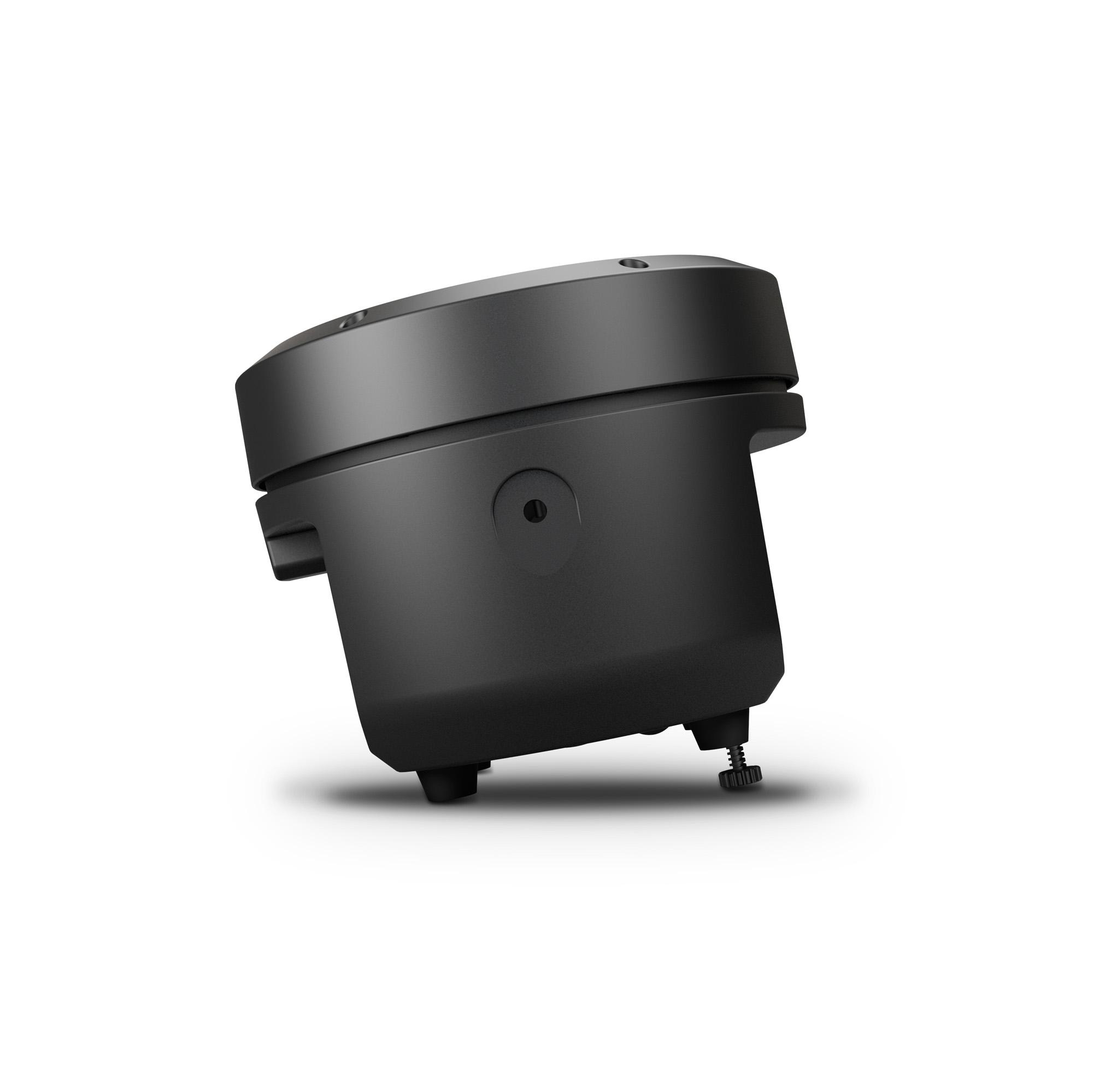

The ROOT PAR BATTERY is supplied with a twin mounting bracket and a tilt adjustment screw, enabling its use as an uplight without a bracket.

The Cameo ROOT PAR BATTERY is your professional and flexible jack-of-all-trades light that lets you keep everything under control and the rugged, compact housing and passive, fan-free convection cooling ensures maximum reliability when touring.

  • 5 × 4 W Quad Colour RGBW LED with 1,000 lm
  • Lenses optimized for even light intensity

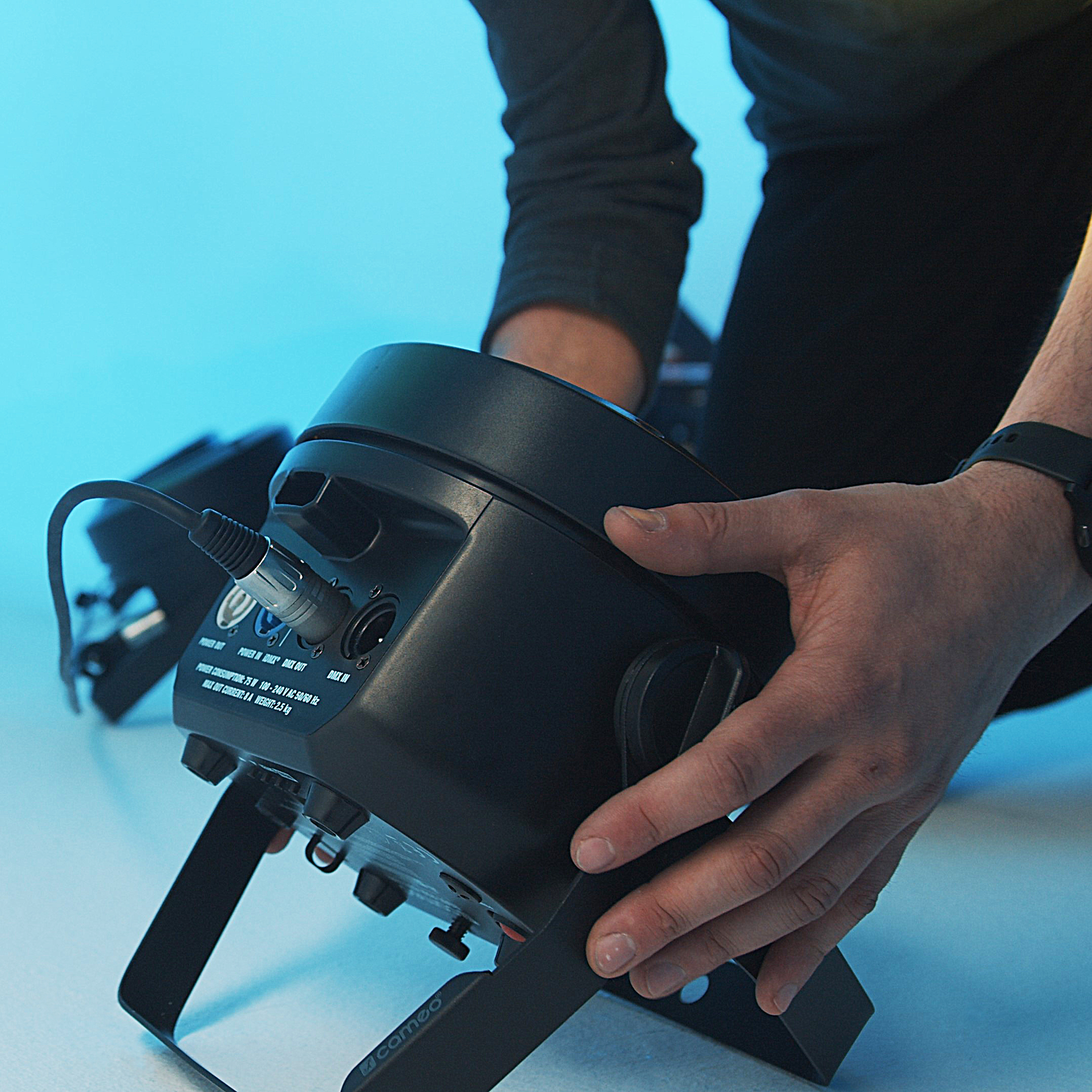

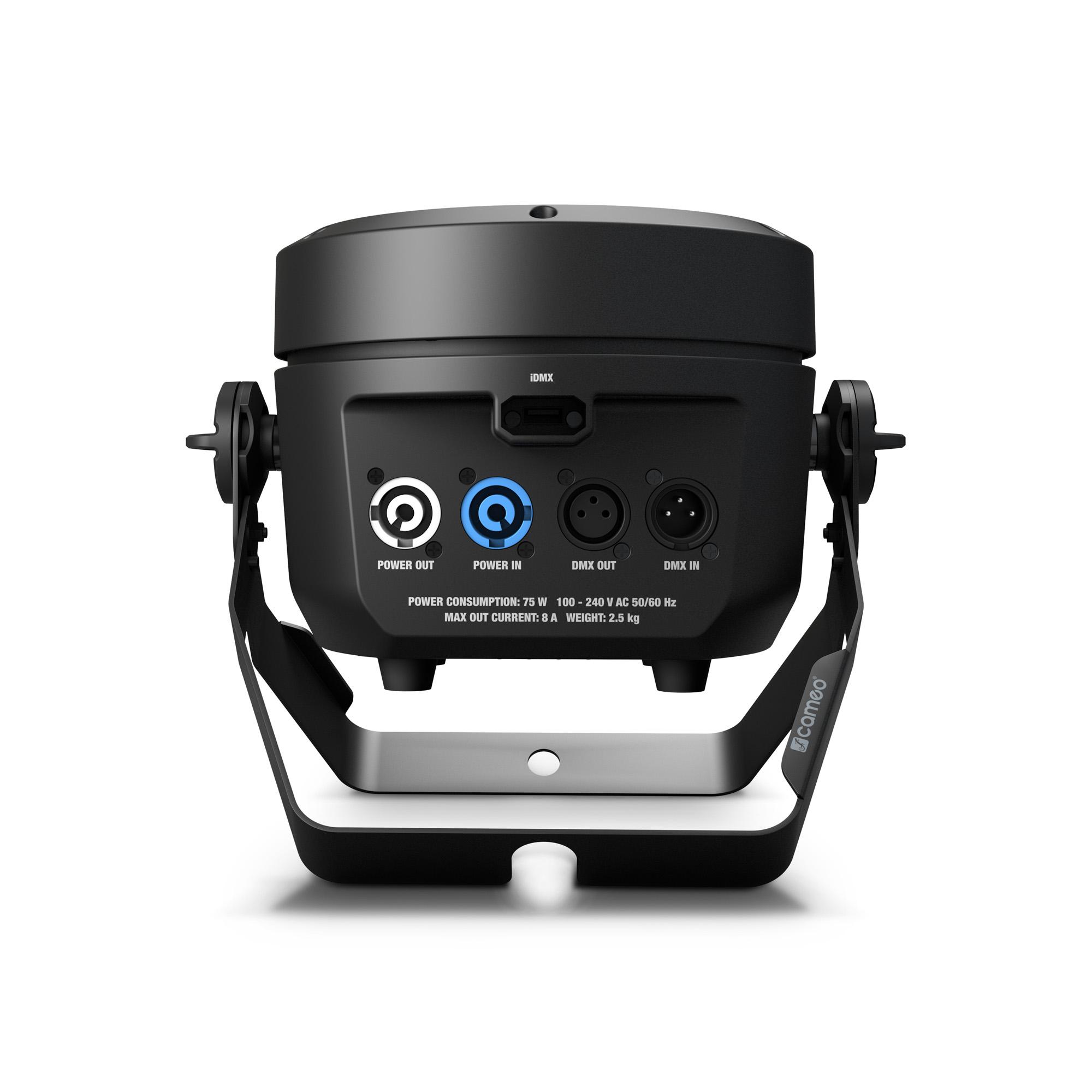

  • DMX and power input and output for daisy-chaining several devices
  • Exclusive, patented EZchase® DMX delay feature for simple chase effects
  • Powerful lithium-ion battery for 5+ hours of mobile operation
  • USB port for iDMX® stick for wireless DMX transmission via W-DMX™
  • Built-in microphone for sound control
  • Flat, compact ABS housing with rubber-coated feet
  • Twin mounting bracket included, tilt adjustment screw for uplighting applications
  • IR remote control available as an option (item no. CLPFLAT1REMOTE)
  • Part number: CLROOTPARBAT
  • Warranty: 2 Years

*Wireless DMX control requires an optional iDMX stick.

z:DMX z:Green z:Mstr/Slv z:Standalone z:LED z:strobe z:RGBW z:Battery z:Sound-to-Light z:EZChase
List Ex VAT: £187.58
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Product type

Rechargeable battery powered LED PAR Light

Colour spectrum

RGBW

Number of LEDs

5 x 4 W

LED PWM Frequency

650 Hz, 1530 Hz, 2150 Hz, 4000 Hz - adjustable

Dispersion

Beam Angle: 19°, Field Angle: 36°

DMX input

XLR 3-pin male

DMX output

XLR 3-pin female

DMX mode

10-channel, 3-channel, 5-channel 1, 5-channel 2, 6-channel, 7-channel

DMX Functions

Chaser selection, colour macro, Dimmer, Dimmer Fine, DMX Delay, RGBW, sound sensitivity, Strobe

Control

DMX512, IR Remote Control, W-DMX

Standalone modes

Auto programs, Colour presets, Loop, sound programs, Static, User Colours

Controls

Down, Enter, Mode, Up

Indicators

OLED Display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

50 W

Housing material

ABS plastic, Black

Cooling

Convection

Illuminance

8000 lx @ 1 m, 806 lx @ 3 m

Luminous flux

1000 lm

Dimensions (W x H x D)

195 mm x 156 mm x 195 mm

Weight
(incl. mounting bracket)

2 kg (2.5 kg)
