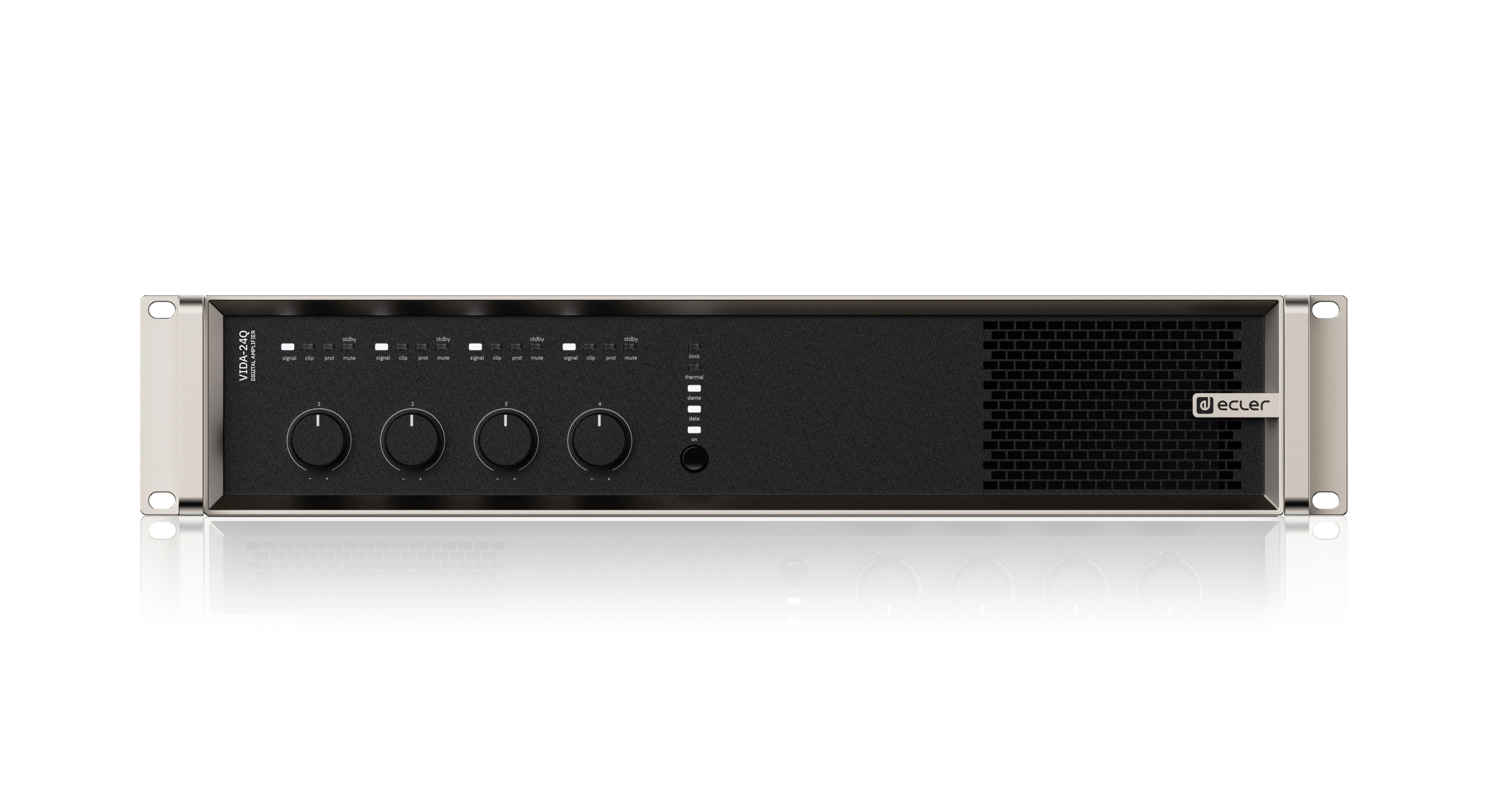

Ecler VIDA-24Q
The Ecler VIDA-24Q is a Dante/AES67 ‘Versatile Installation Digital Amplifier’ rated at 2400W, with 4 amplified outputs that can be independently configured in high (100/70V) or low (8/4/2ohm) impedance.
Designed for system integrators and pro AV installers, the VIDA high-performance digital amplifiers are equipped with VersaPower, Events automation, Groups control, an internal audio player, adaptable user control panels, advanced DSP processing and a "Sleep Mode" with one of the lowest energy consumption ratios in the market.
Smart VersaPower
Distribute all the power asymmetrically to one, two or any of the outputs. Assign the power distribution from the embedded web application GUI software.
Events Automation
Set up calendar events, GPI triggering, programmable GPOs, Third Party protocol tailored to your space needs.
Groups Control
Having both local groups and networked groups, allowing to control several amplifiers at the same time from the end user app.
Internal Audio Player
Choose and edit your SD Card music playlist based on calendar (automated) / instant events / user control (real-time).
Adaptable User Control Panels
Create, edit and manage user control panels using a simple editor to control VIDA amplifiers from your smart device.
Advanced DSP Processing
Including Backup and Priority audio modes, PEQ, GEQ, Limiters, Delays, Mixer/Matrix modes, etc.
Ultra Low Energy Consumption
While in sleeping mode VIDA amplifiers consume 10 times less energy than others
Plus, with its intuitive built-in Web Application GUI, you can control and configure the VIDA-16Q, VIDA-24Q and VIDA-48Q from anywhere.
Unlike some amplifiers where power sharing is limited to channel pairs, Eclers VersaPower technology allows asymmetrical power distribution across all outputs. The Smart VersaPower tool helps installers facilitate a smart and fast configuration.
Class D amplification technology and configurable 4-outputs, auto standby and sleep mode functions, offer excellent energy efficiency.
A built in audio player with microSD slot provides easy playback of local audio files.

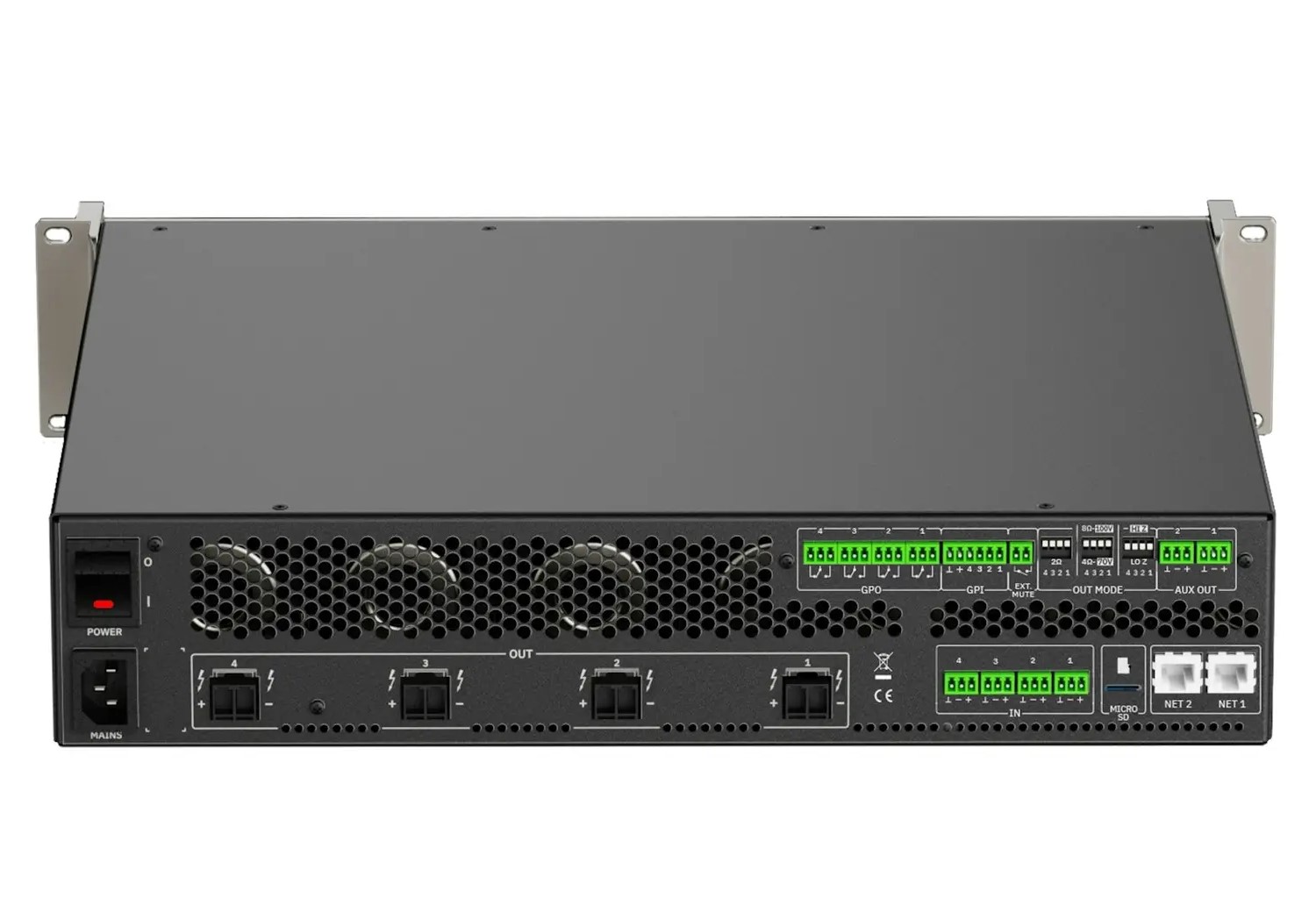

Features include 4 analogue inputs and 2 auxiliary line outputs as well as 4 Dante/AES67 digital inputs and 4 Dante/AES67 digital outputs and a signal generator.

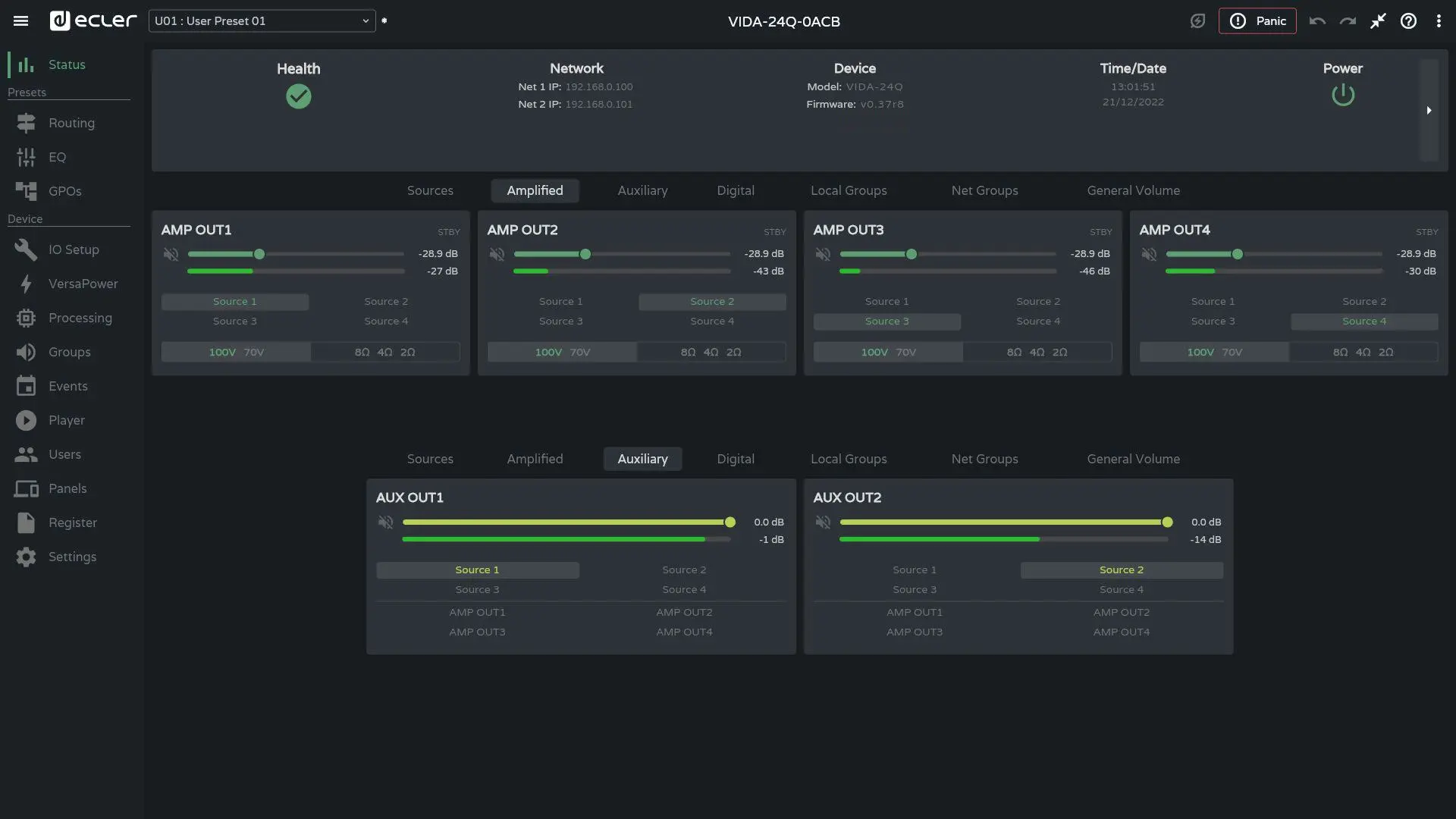

All features on the VIDA amp are managed from the intuitive web application which, among other functionalities, allows signal routing, matrix, audio signal processing such as equalisation or limiters, priority management, GPIO configuration through events, as well as calendar events, playlist management and SD card content.

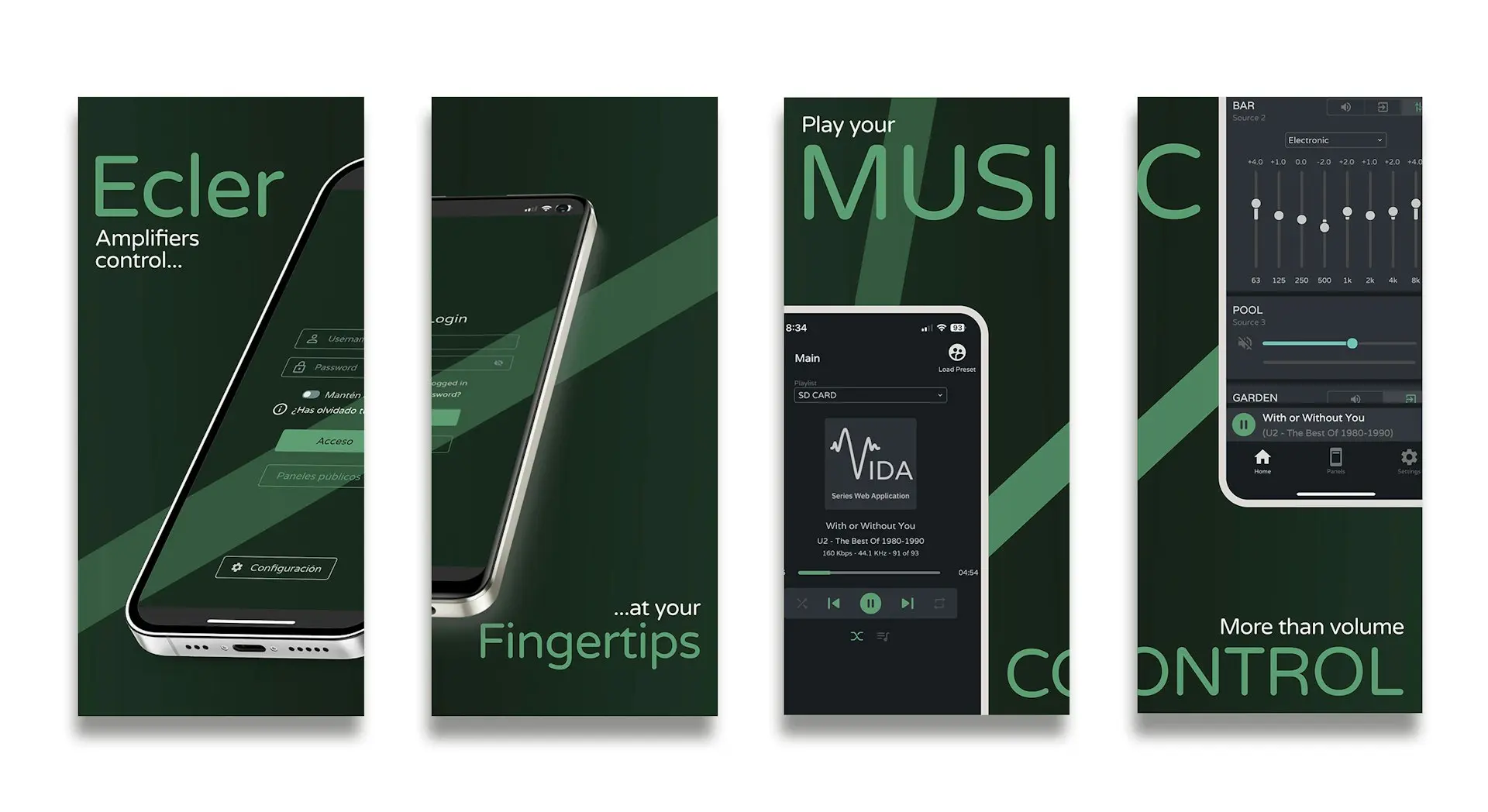

An Android/iOS/Web application is available to the end user for an easy, intuitive method of set-up, control and management of functions.
- 4 amplified outputs VersaPower asymmetrical 2400W power management
- 4 Dante™ outputs and 4 Dante/AES67 inputs
- 2 auxiliary outputs
- 4 analogue inputs
- MicroSD/SDHC audio player
- Internal matrix and signal processing
- Web application for device configuration
- Smart power management VersaPower
- Control and scheduled events for automation
- Customized User Panels
- Remote control user application for iOS/Android/Web
- Ultra low power consumption "Sleep Mode"

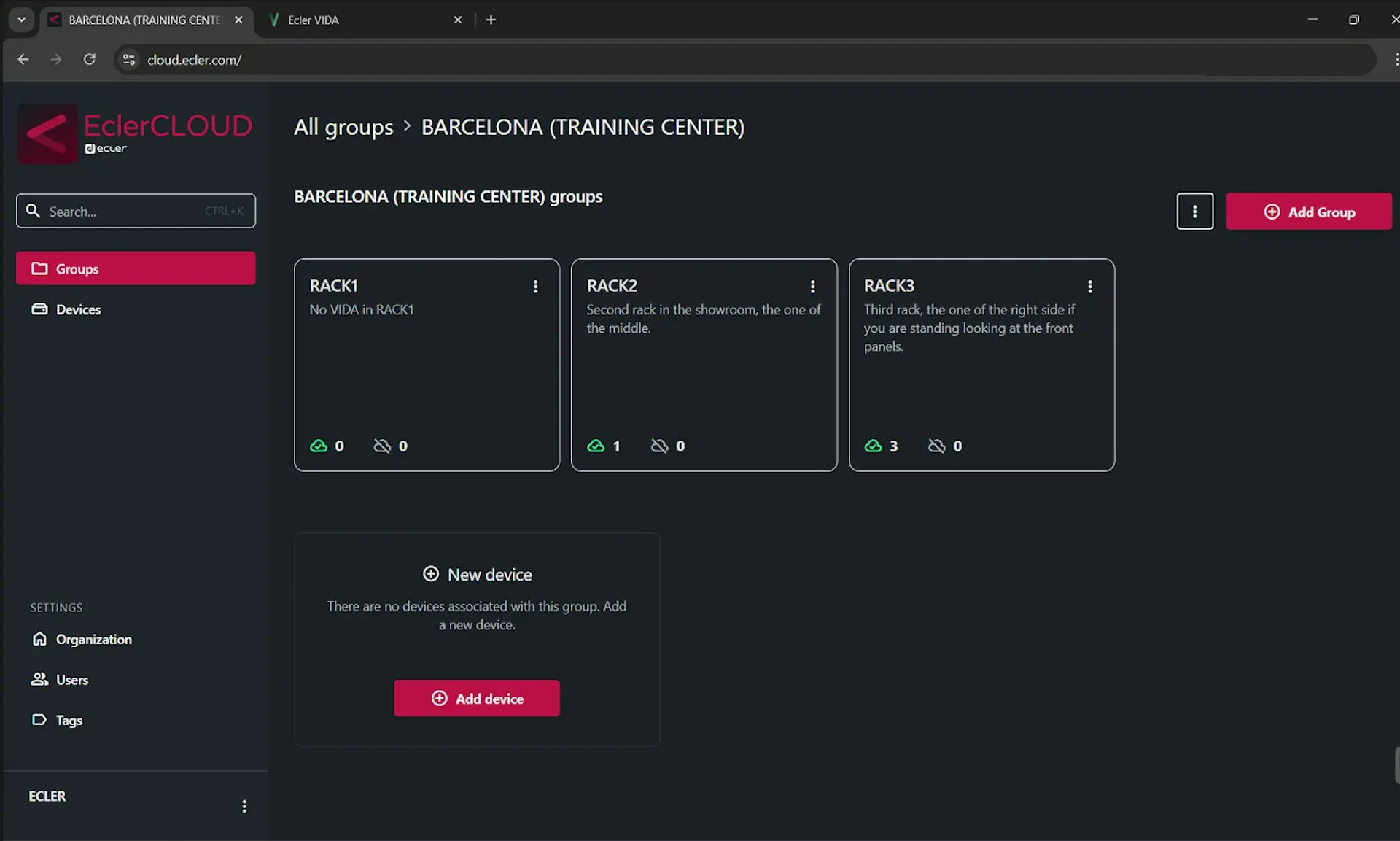

- Compatible with the Remote Monitoring & Control Platform EclerCLOUD.
- Warranty: 5 Years
 |
