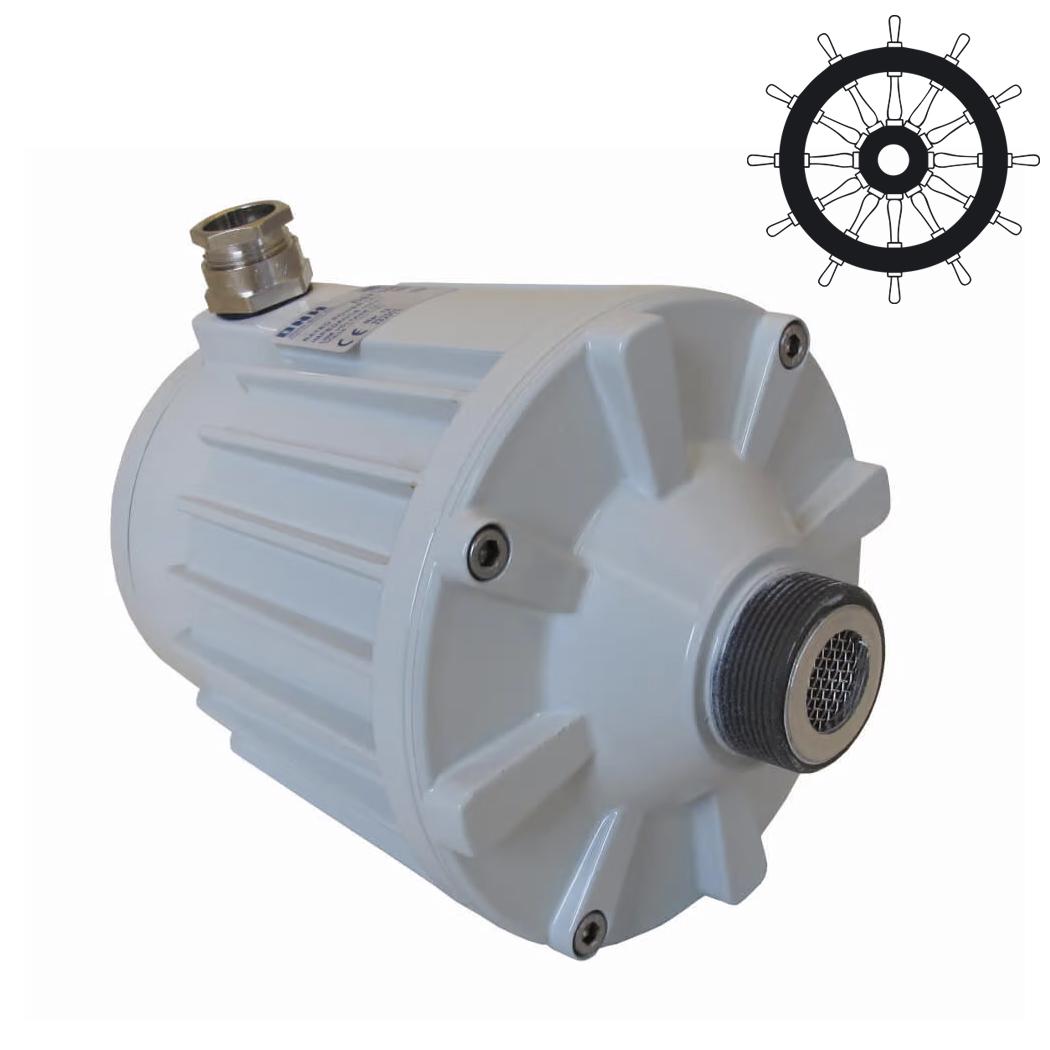

DNH DST-100-MED

The DNH DST-100-MED high power horn driver is ideal for use in conjunction with the DNH DH-50 flare. (See related products below.)

Rated at 100W RMS, 100 Volt line .

Compliant with the Marine Equipment Directive 2014/90/EU standard for Safety of Life at Sea (SOLAS) Maritime applications.

The DST100-MED is constructed in aluminium and is water resistant with an IP rating of IP67.

The audio specifications below are when fitted to the DH-50 flare which is available to purchase separately.

100V IP67 MED
List Ex VAT: £617.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Transformer Tappings

100W, 60W, 30W, 15W, 7.5W

Material / Colour

Aluminium alloy / RAL 7035

Mounting

Threaded UNEF 1 3/8 - 18

Termination

Inside screw terminals

Weight

2.4 kg

IP-rating

67

Max. / min. amb. Temp

150⁰C / -50⁰C

Rated power

100W

SPL 1W/1m

112dB

SPL rated power

132dB

Effective freq. range

200 – 5500 Hz

Dispersion (-6dB) 1kHz / 4kHz

42⁰ / 25⁰

Directivity factor, Q1kHz/4kHz

8.5 / 42.2

Safe Compass Distance

5 m
