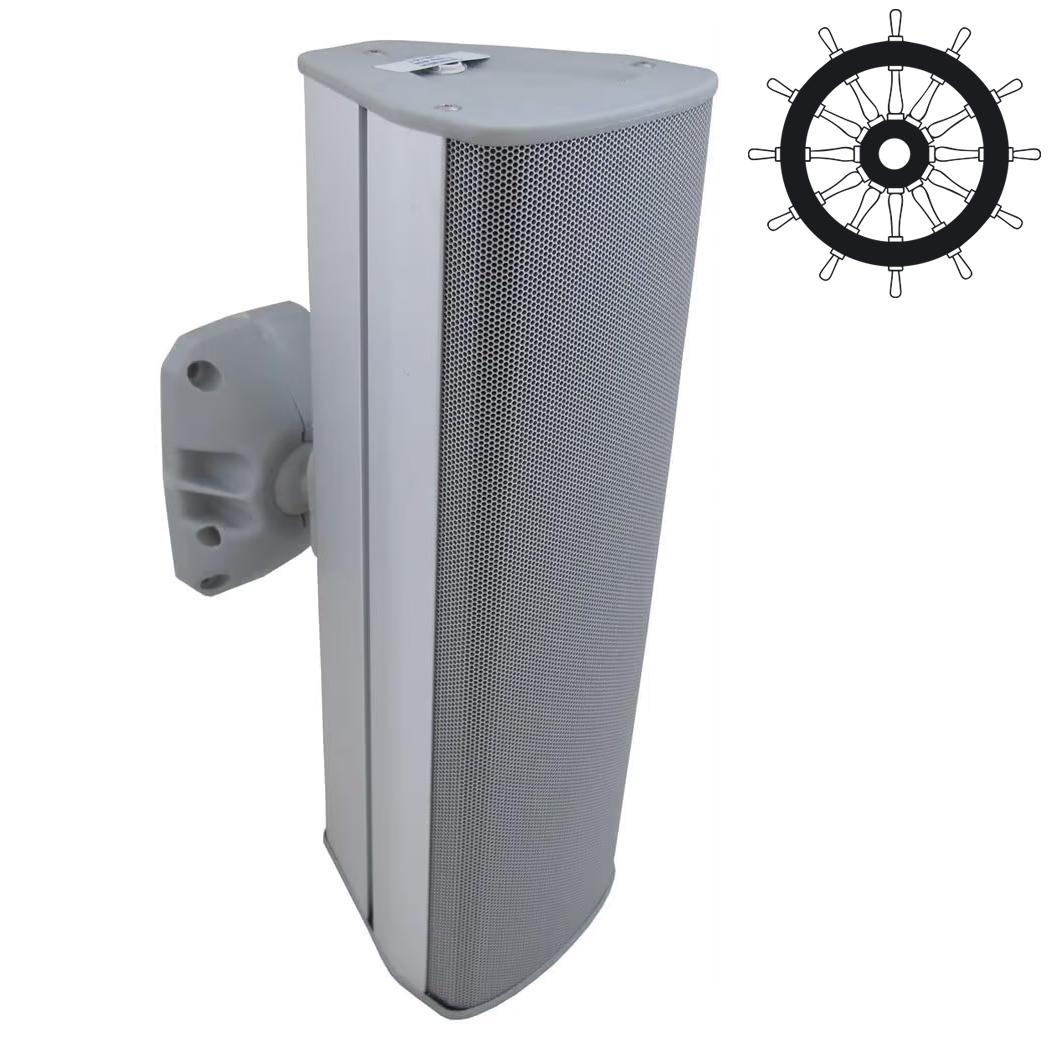

The DNH CAS-15-54T-MED aluminium column loudspeaker is rated at 15 watts, 70/100V line and is certified for EN54-24 voice alarm for fire detection and fire alarm systems in buildings and ships.
Compliant with the Marine Equipment Directive 2014/90/EU standard for Safety of Life at Sea (SOLAS) Maritime applications.
Water resistant, rated IP55.
Contructed from aluminium and fitted with a ceramic terminal block.
Warranty: 2 Years.
| Rated Power (rms) | 15W |
| Power Taps @ 100V | 15W, 7.5W, 4W, 2W |
| SPL (1W/1m) | 93dB |
| Max SPL (rated/1m) | 104dB |
| Frequency Range (-10dB) | 100HZ - 20KHZ |
| Dispersion 1K Hz / 4K Hz | 150° / 90° |
| Termination | Ceramic terminal |
| Max. / min. amb. temp | 90°C / -40°C |
| IP Rating | IP55 |
| Material | Aluminium |
| Colour | Silver (RAL9006) |
| Weight (kg) | 1.9kg |
| Dimensions (H x W x D) mm |
300 x 102 x 109 |
| Mounting | Aluminium bracket |
