DNH HP-6CT-MED

DNH HP-6CT-MED

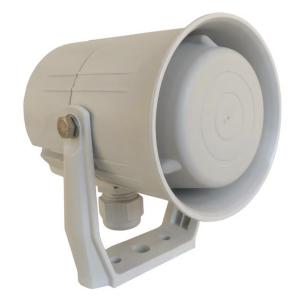

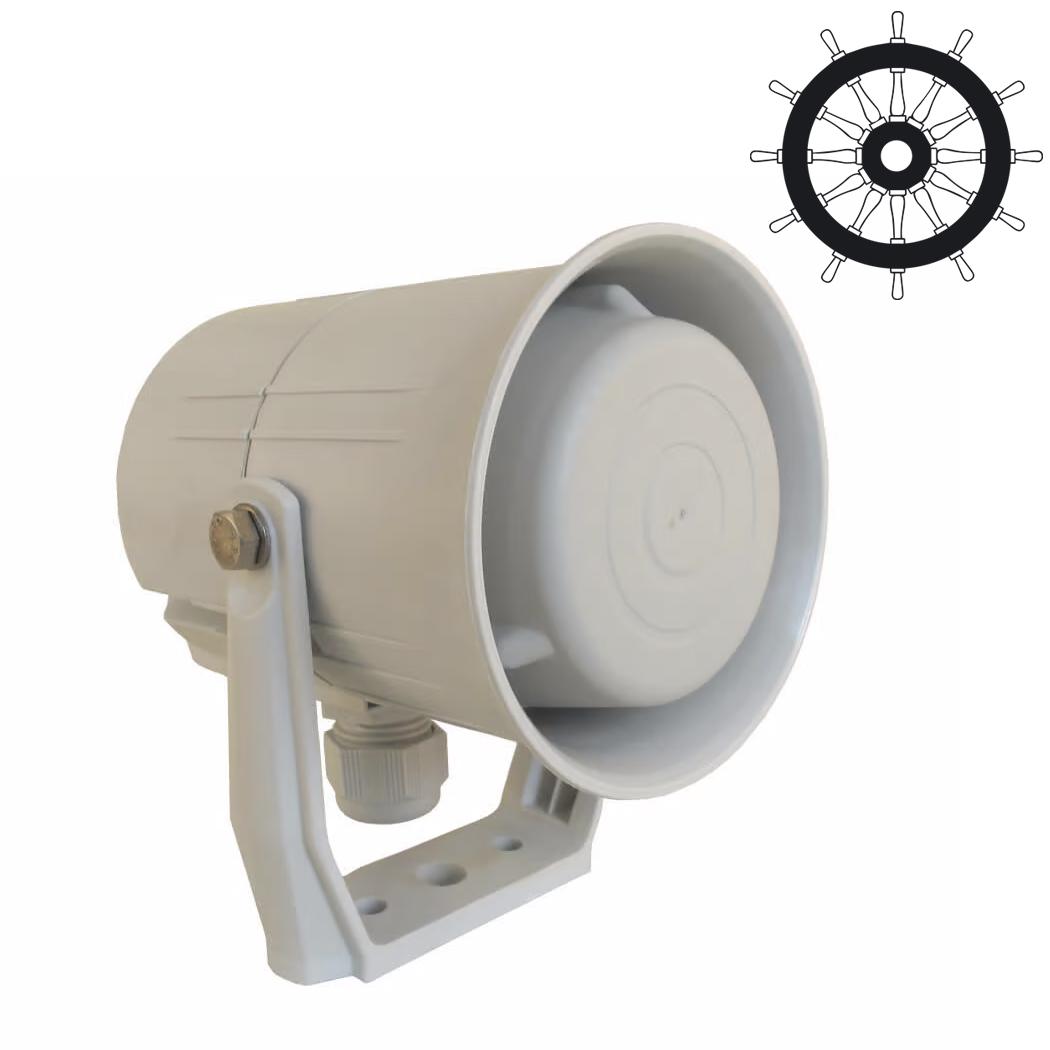

The DNH HP-6CT-MED is a 6 watt marine grade miniature weatherproof horn speaker for 100 volt line public address sound systems.

Compliant with the Marine Equipment Directive 2014/90/EU standard for Safety of Life at Sea (SOLAS) Maritime applications.

This small and lightweight horn is also compliant with EN 45545-2, the European safety standard for materials used in Railway vehicles.

The HP6CT-MED horn is IP67 rated, constructed from Polyamide UL94 V0 and features a termination chamber. It's therefore ideal for use in extreme weather conditions, marine & offshore applications or for outdoor sound systems.

Supplied with sturdy mounting bracket.

Light grey, RAL7035.

Warranty: 2 Years

100V IP67 MED
List Ex VAT: £145.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 6W
SPL (1W/1m) 100dB
Max SPL (rated/1m) 107dB
Frequency Range (-10dB) 300HZ - 20KHZ
Dispersion (-6dB) 1kHz / 4kHz 178° / 62°
Directivity Factor, Q 1kHz/4kHz 2.0 / 5.8
Termination Spring clamp
Max. / min. amb. temp 110°C / -40°C
IP Rating IP67
Material Polyamide - (UL94 V0)
Colour Grey (RAL7035)
Weight (kg) 0.62 kg
Dimensions (Ø x D) mm 97 x 132
Mounting Bracket supplied

DOWNLOADS

DNH HP-6CT-MED Datasheet
DNH HP6-CT-MED Compliance Certificate
