DNH VES-561T-MED

DNH VES-561T-MED

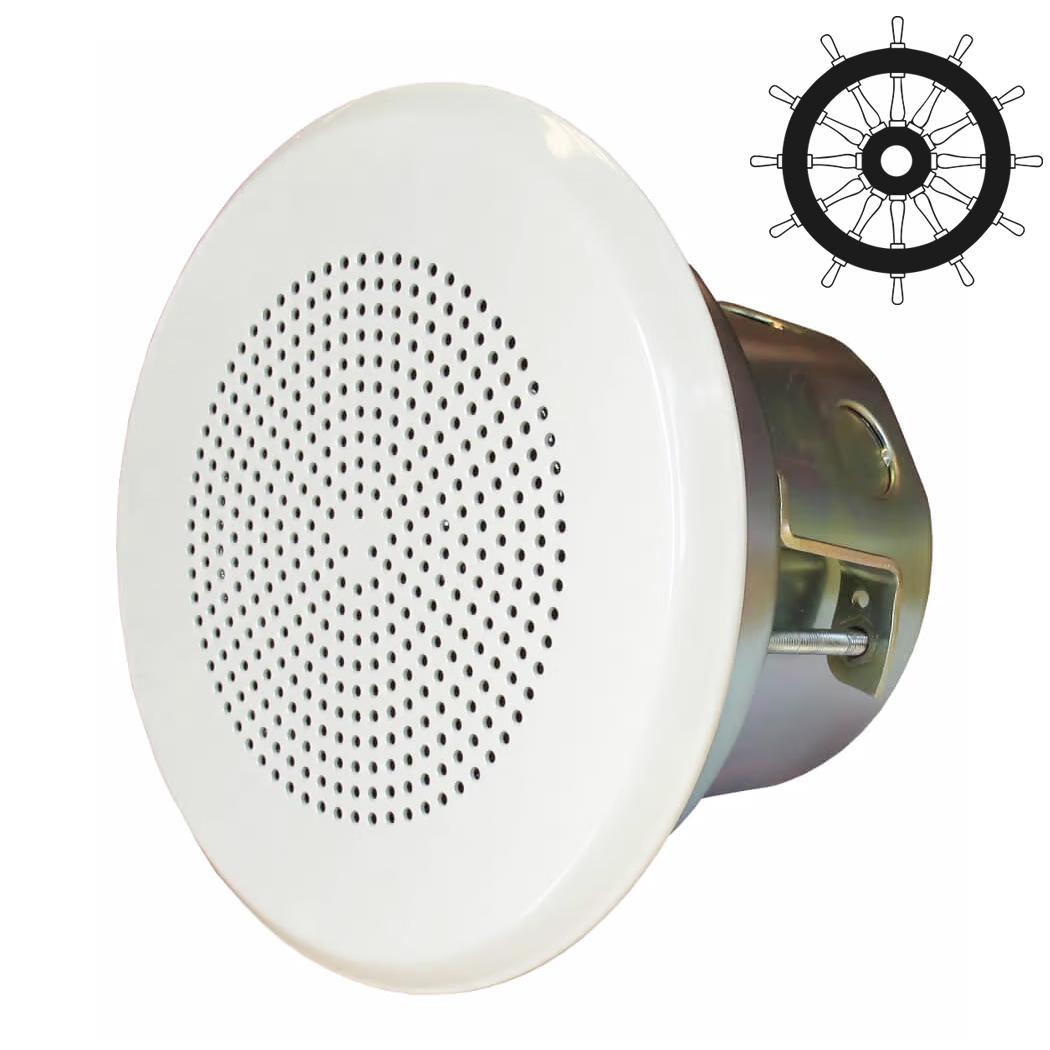

The DNH VES-561T-MED is a 5" 6 watt, 100 volt line metal ceiling speaker complete with steel firedome, for voice evacuation PA systems in buildings and ships.

Compliant with the Marine Equipment Directive 2014/90/EU standard for Safety of Life at Sea (SOLAS) Maritime applications.

The VES561T-MED is BS5839 Part 8 certified and features include ceramic terminal block, thermal fuse and mounting method which accomodates a range of ceiling thicknesses.

Lightly water resistant, rated IP32.

Warranty: 2 Years.

100V IPxx
List Ex VAT: £112.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 6W
Power Taps @ 70/100V 6W, 3W, 1.5W & 0.5W
SPL (1W/1m) 90dB
Max SPL (rated/1m) 97dB
Frequency Range (-10dB) 100HZ - 13KHZ
Max. / min. amb. temp 90°C / -20°C
Dispersion 1K Hz / 4K Hz 160° / 60°
Termination Ceramic terminals
Material Steel,
Colour White, RAL9010
Dimensions mm 165 Dia. X 122 Height mm. (in.)
Weight (kg) 1.1
Mounting 3 screws
IP rating IP32C

DOWNLOADS

DNH VES-561T-MED datasheet
DNH VES-561T -MED Compliance Certificate
