Monacor ATT-1950
Click to expand

Monacor ATT-1950

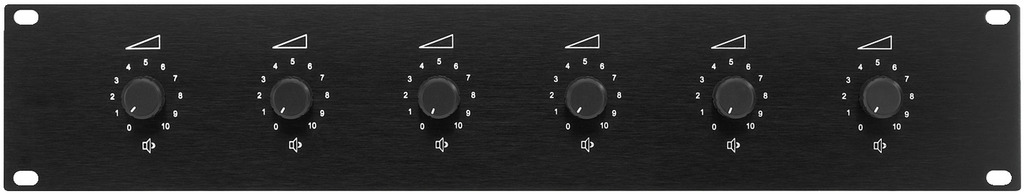

The Monacor ATT-1950 is a 6 way volume control for a commercial audio 19" rack installation.

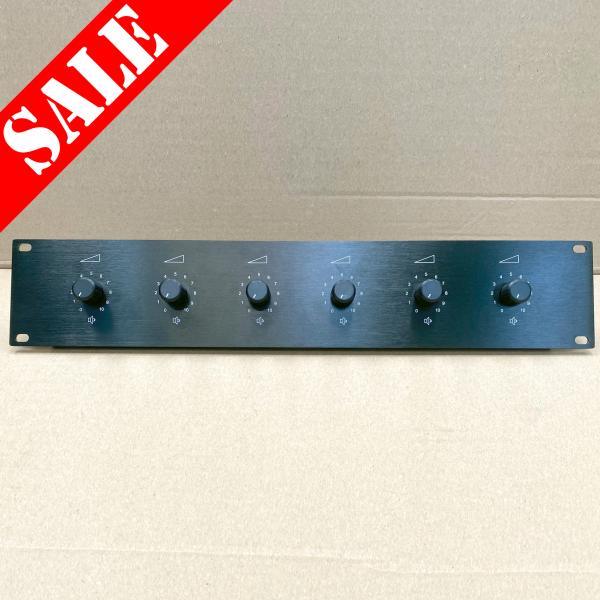

Clearance line - Grade B. This was returned by a customer as faulty but has been tested by the manufacturer and found to be in perfect working order, no fault found. No original box or printed instructions. Less thank half price.

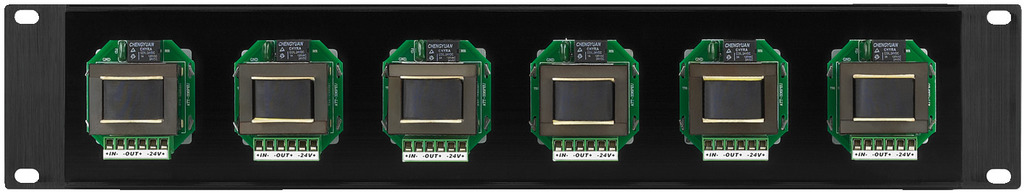

6 x 50 Watt transformers are mounted on a 2U high rack panel, for 100 Volt line audio.

  • 6-way PA volume control for 482 mm (19") rack installation
  • 6 audio transformers for 100 V transmission technology
  • Power rating: 6 x 50 W
  • Connection for priority circuit, 6 priority relays ( DC 24 V/20 mA)
  • Attenuation in 10 steps, position 0 is OFF
  • Aluminium front panel
  • Available in 3 power classes
  • Plug-in screw terminal
List Ex VAT: £50.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Description

wall-mounted PA volume control

Frequency range

50-18,000 Hz

Power rating

6 x 50 W

Priority facility

yes

Dimensions

484 x 88 x 77 mm, 2 RU

Weight

1.379 kg
