Audac AWP06
Audac AWP06
Click to expand

Audac AWP06

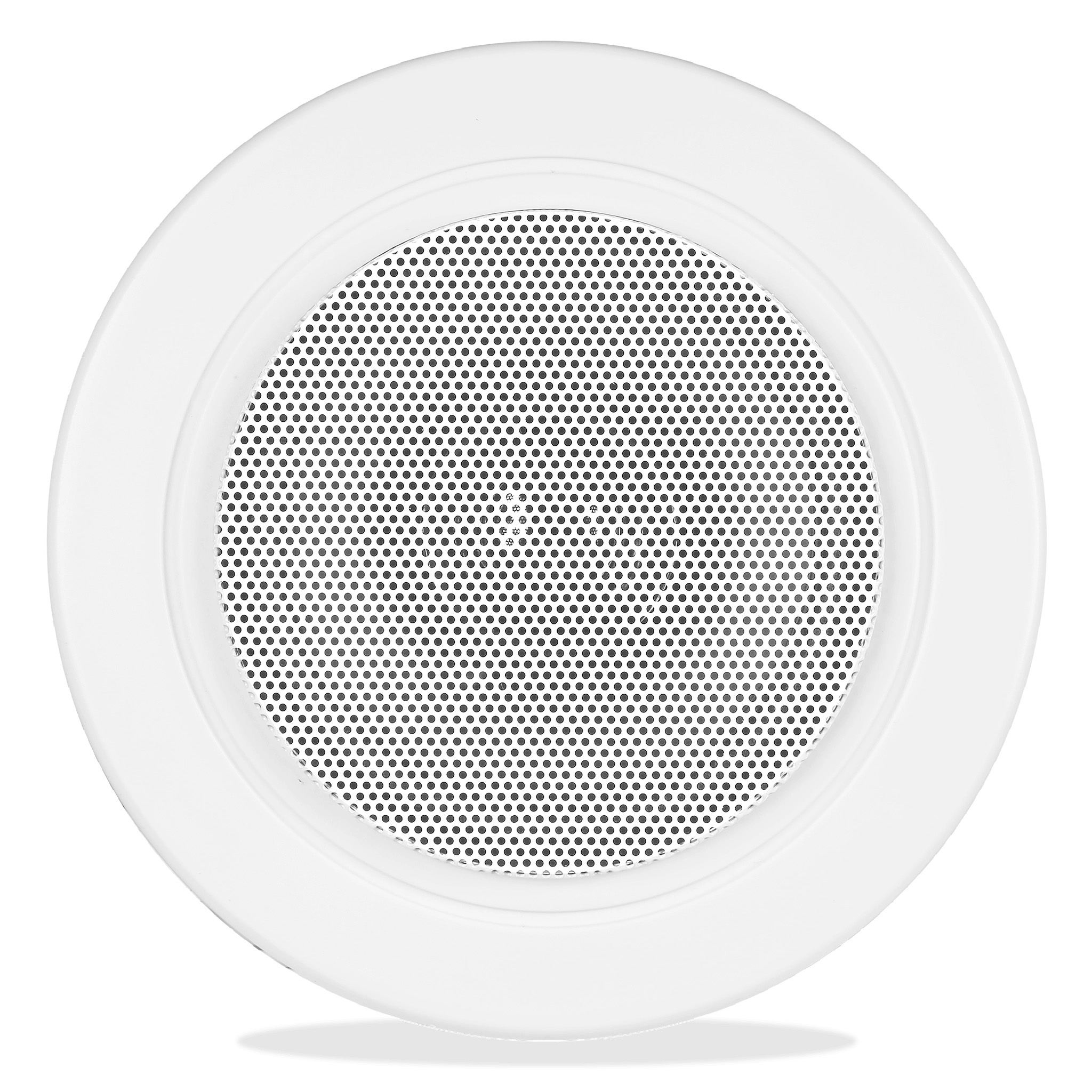

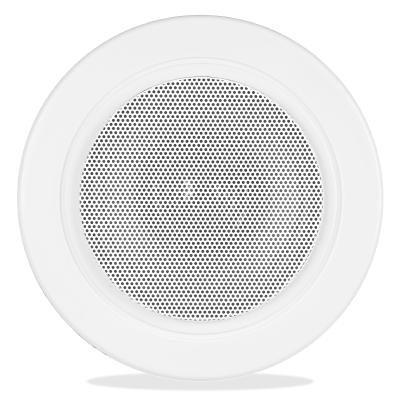

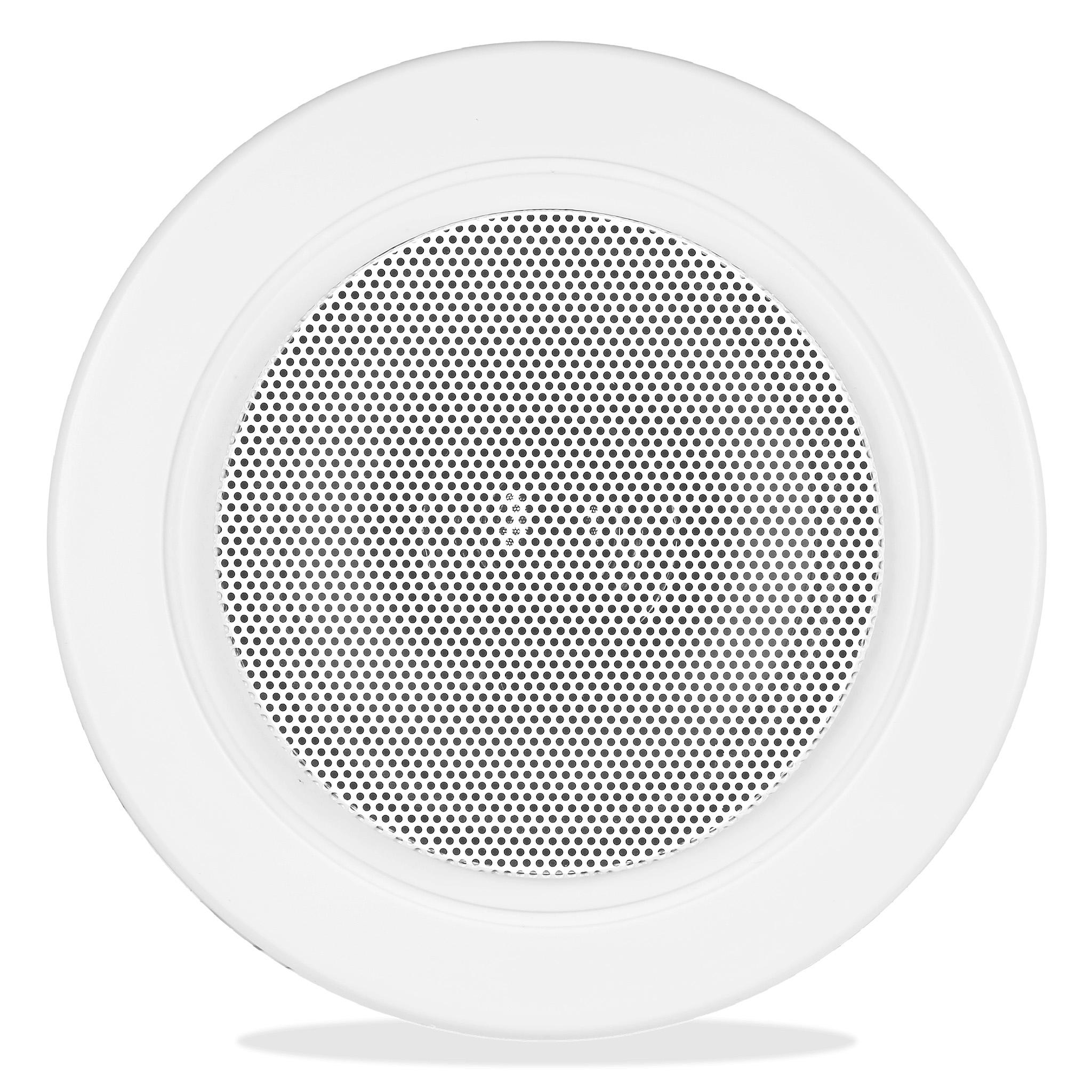

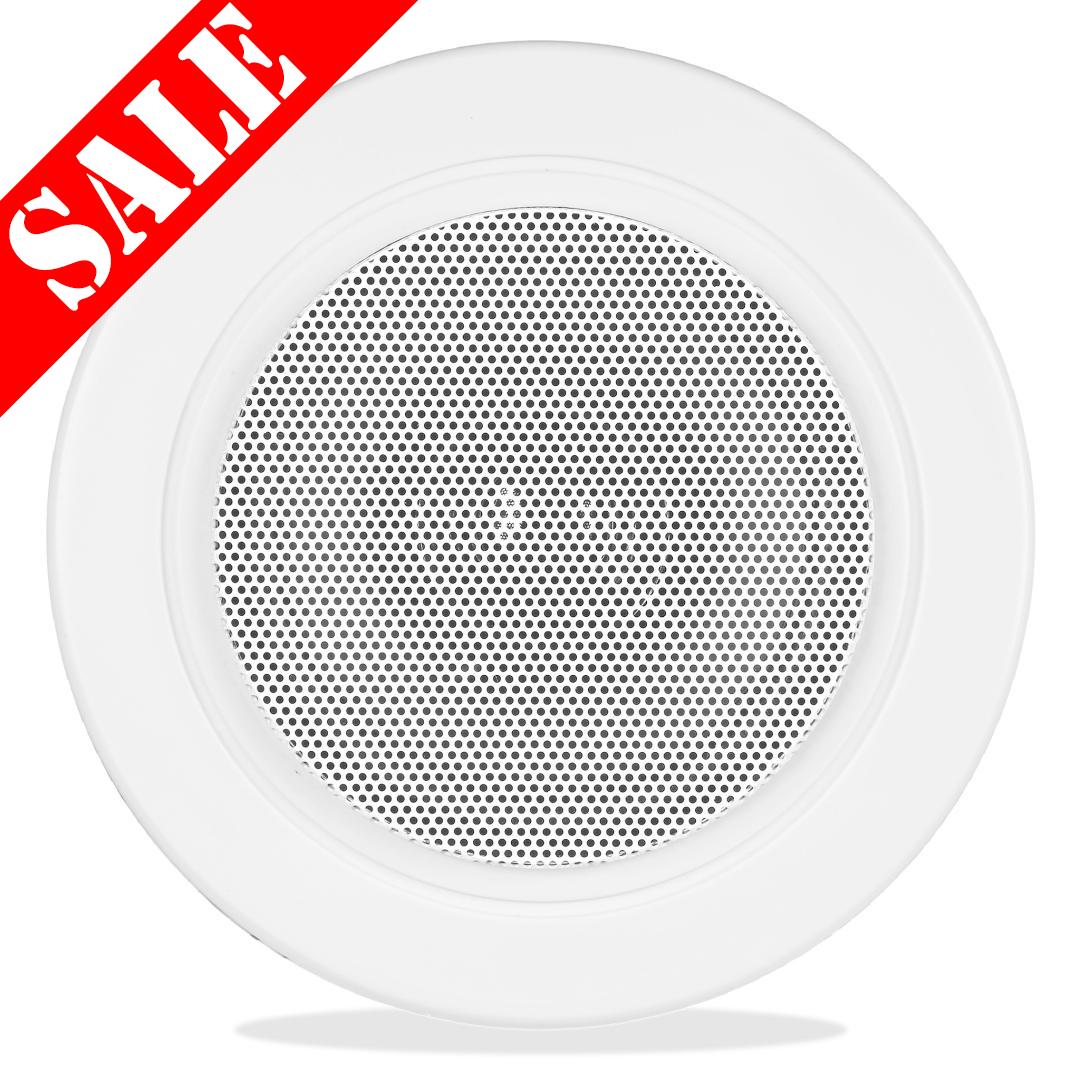

The Audac AWP06 waterproof ceiling speaker is rated at 6 watts RMS and is suitable for low impedance (8 Ohm) or 100 Volt line distributed audio systems with power taps for 6, 3 and 1.5 Watts.

Clearance line - limited stock.

It is water resistant with an ingress protection rating of IP65.

Ideal for indoor or outdoor locations in damp environments such as bathrooms, shower rooms and changing rooms.

Constructed from ABS plastic and finished in white.

100V IPxx 8ohms
List Ex VAT: £15.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Max. Power

 10 W

RMS Power

 6 W

Frequency Response (± 3 dB)

 100 Hz - 15 kHz

Sound Pressure (Max. W/1m)

 95 dB

Line Transformer Tappings

 6 W / 1666 Ω, 3 W / 3333 Ω, 1.5 W / 6666 Ω

Impedance

 8 Ω

Ingress Protection rating

 IP65

Driver

 4”

Dimensions

 140 x 148.5 mm (Ø x H)

Built-in depth

 148.5 mm

Cut-out measurement

 125 mm (Ø)

Weight

 0.79 kg

Operating temperature

 -20 °C ~ 60 °C

Construction

 ABS

Colour

 White (RAL9010)

DOWNLOADS

Audac AWP06 Datasheet
