The RCF P 5228-L is a weatherproof full range, two-way speaker which can be installed individually or coupled in array configurations. Ideal for indoor or outdoor large spaces, P Series speakers are ideal for a variety of Pro-sound applications providing concert-level high performance in a compact enclosure.

The high-frequency section includes two constant directivity CMD horns, each loaded with a 1" RCF Precision neodymium compression driver with a 1.75" diaphragm assembly for smooth, highly controlled 20° vertical coverage.

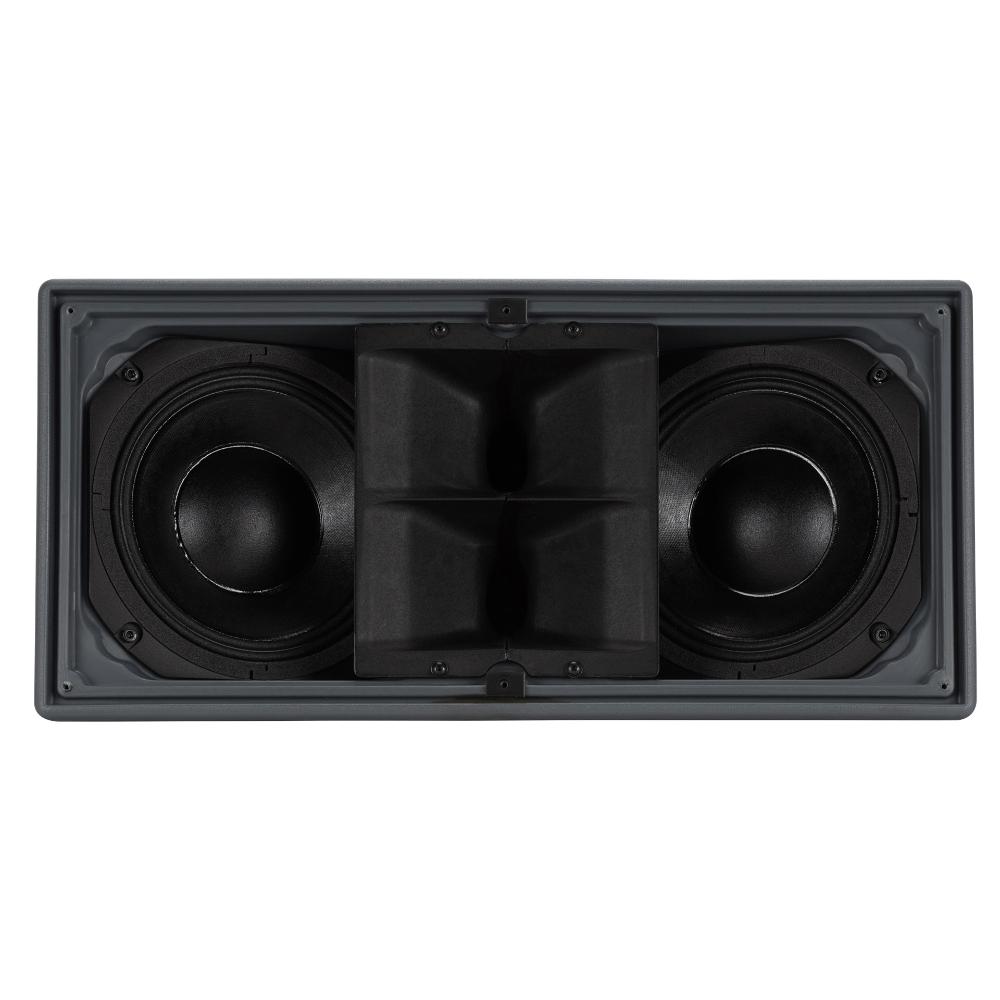

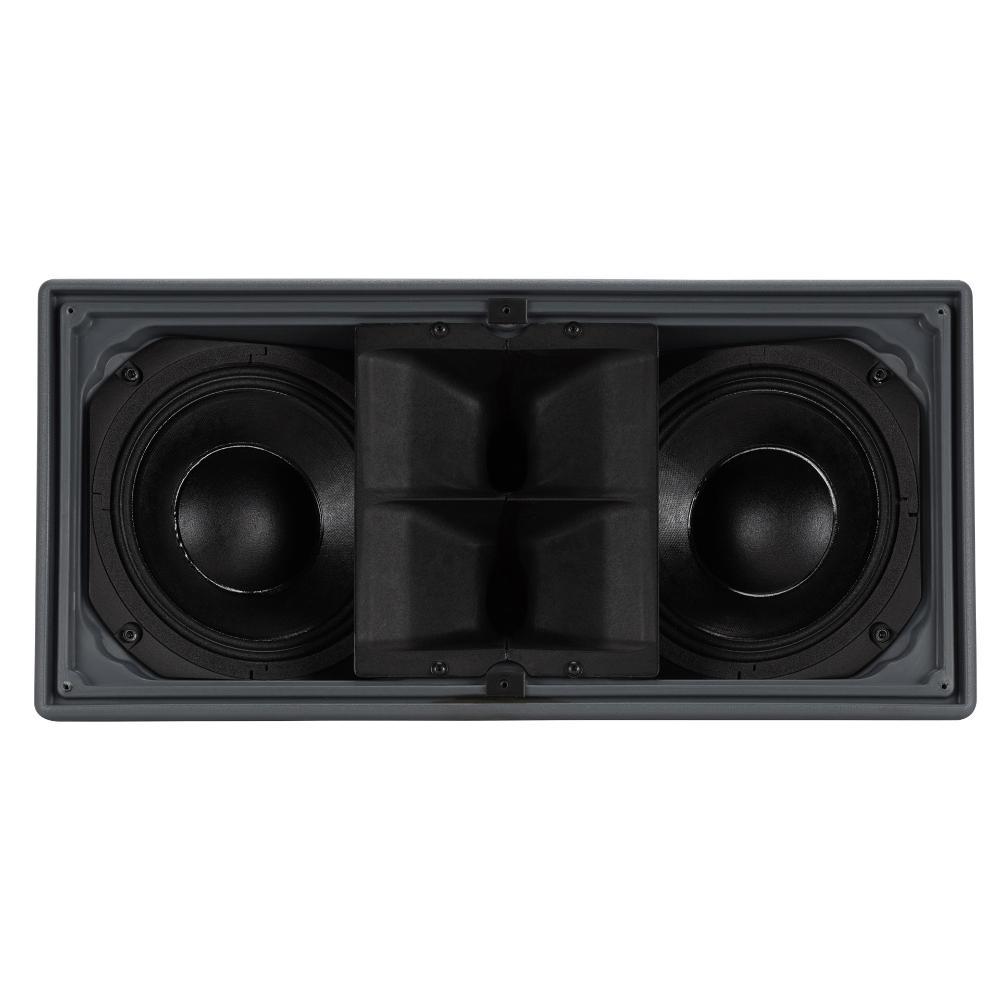

The low-frequency section combines two 8" woofers with a 2.5" voice coil. The symmetrical arrangement of the transducers delivers a controlled horizontal dispersion with consistent directivity.

Internal circuitry provides LICC crossover and Active Mosfet Compression Driver Protection (AMCDP).

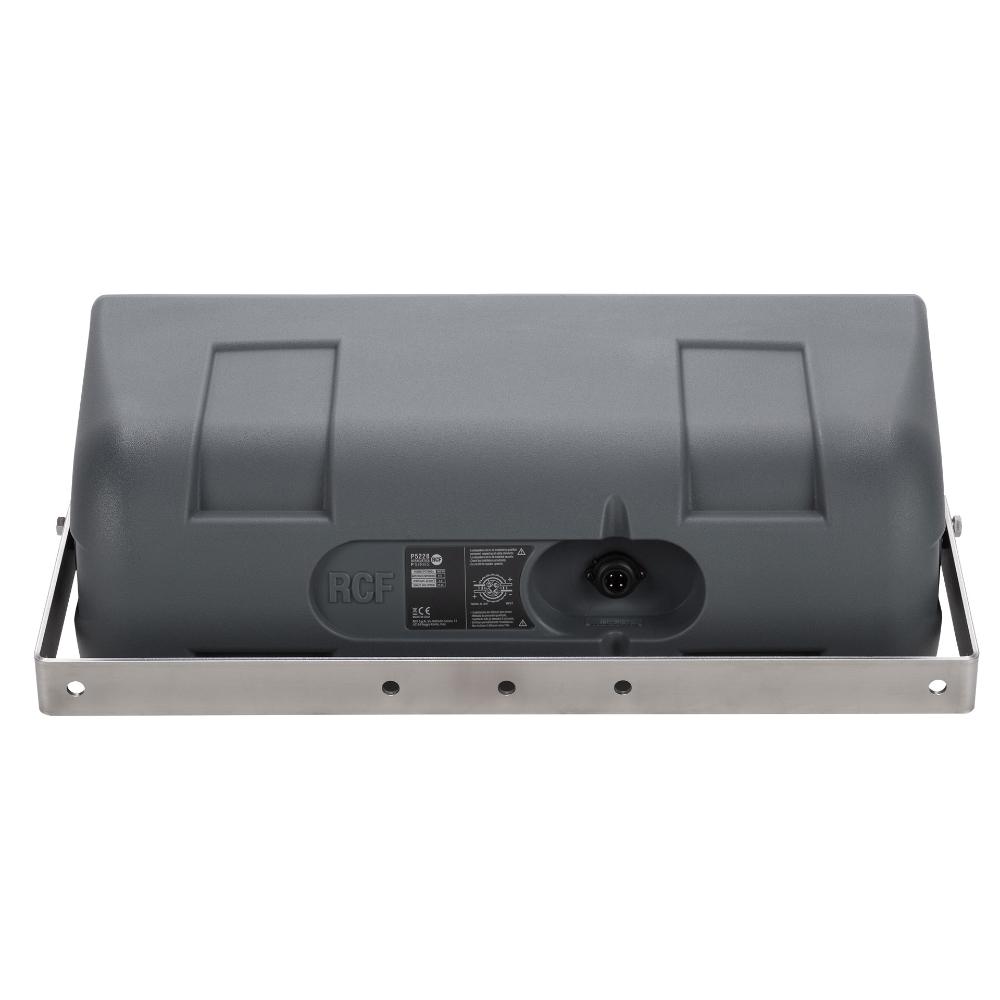

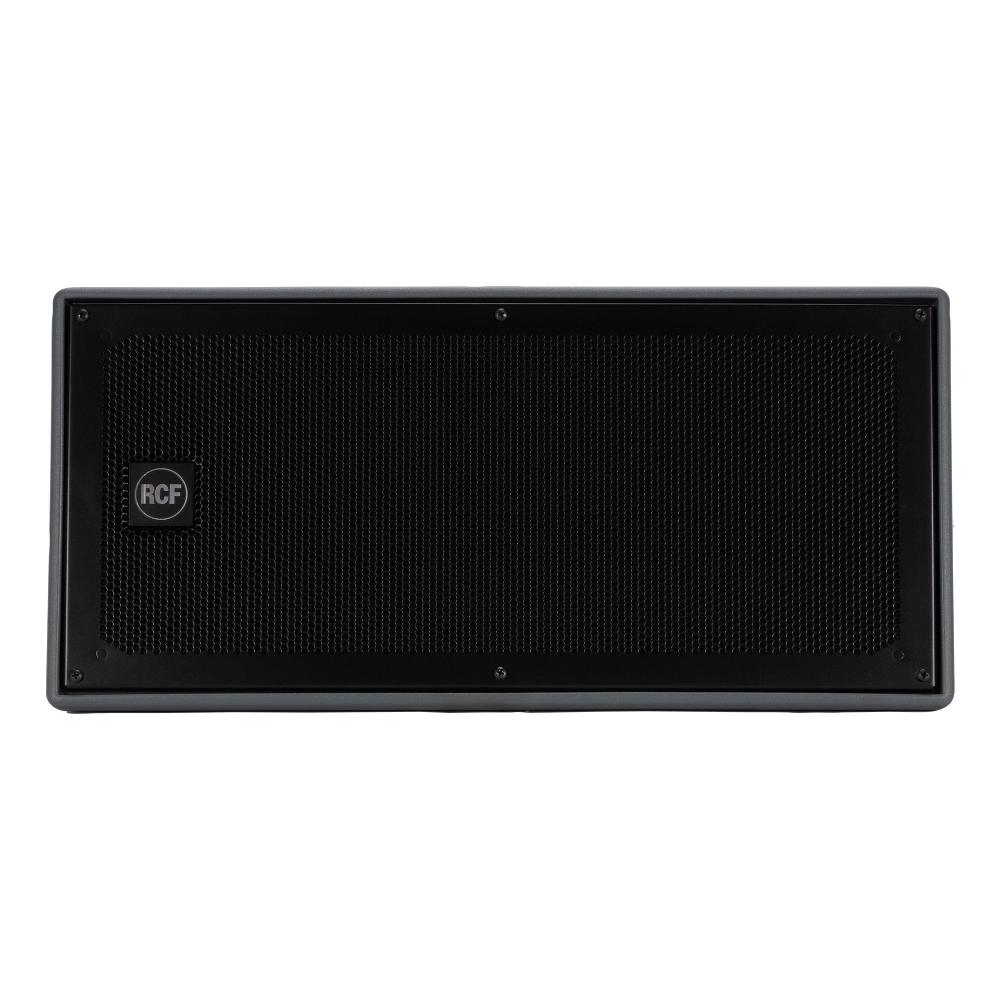

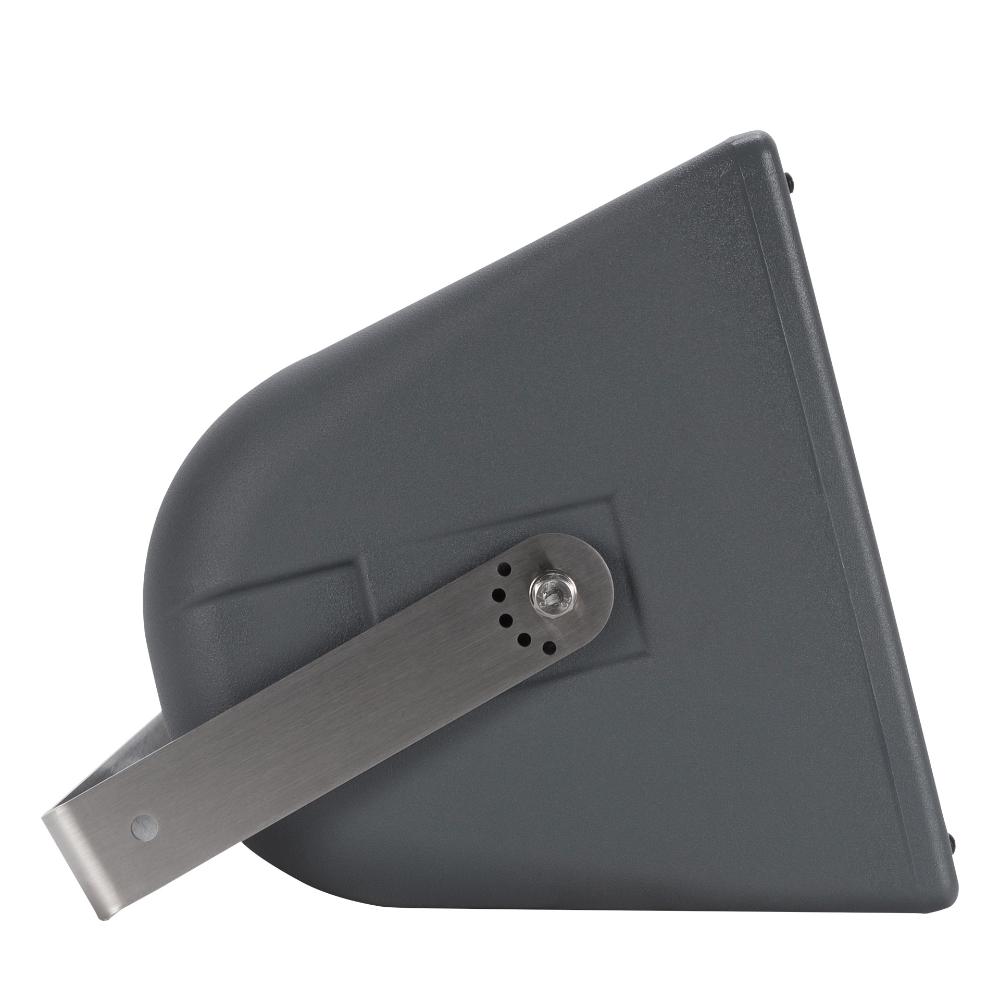

The single-piece roto-molded cabinet of the P5528L is fully UV protected and meets IP 55 standard requirements, equipped with M8 brass inserts (4x) and a corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The front aluminum grille is powder coated with water-repellent backing material and has a rotatable logo plate.

• 500 W RMS power handling
• 131 dB max SPL
• 80 Hz ÷ 20000 Hz frequency range
• 2 x 8" neodymium woofer, 2.5" v.c.
• 2 x 1.75" v.c. neodymium compression driver
• 90° x 20° constant directivity
• Weatherproof IP55 cabinet with UV protection
• Aluminum grille
• AISI 316L stainless steel bracket
• Amphenol IP67 4 pole input connector
