TOA PC-2668

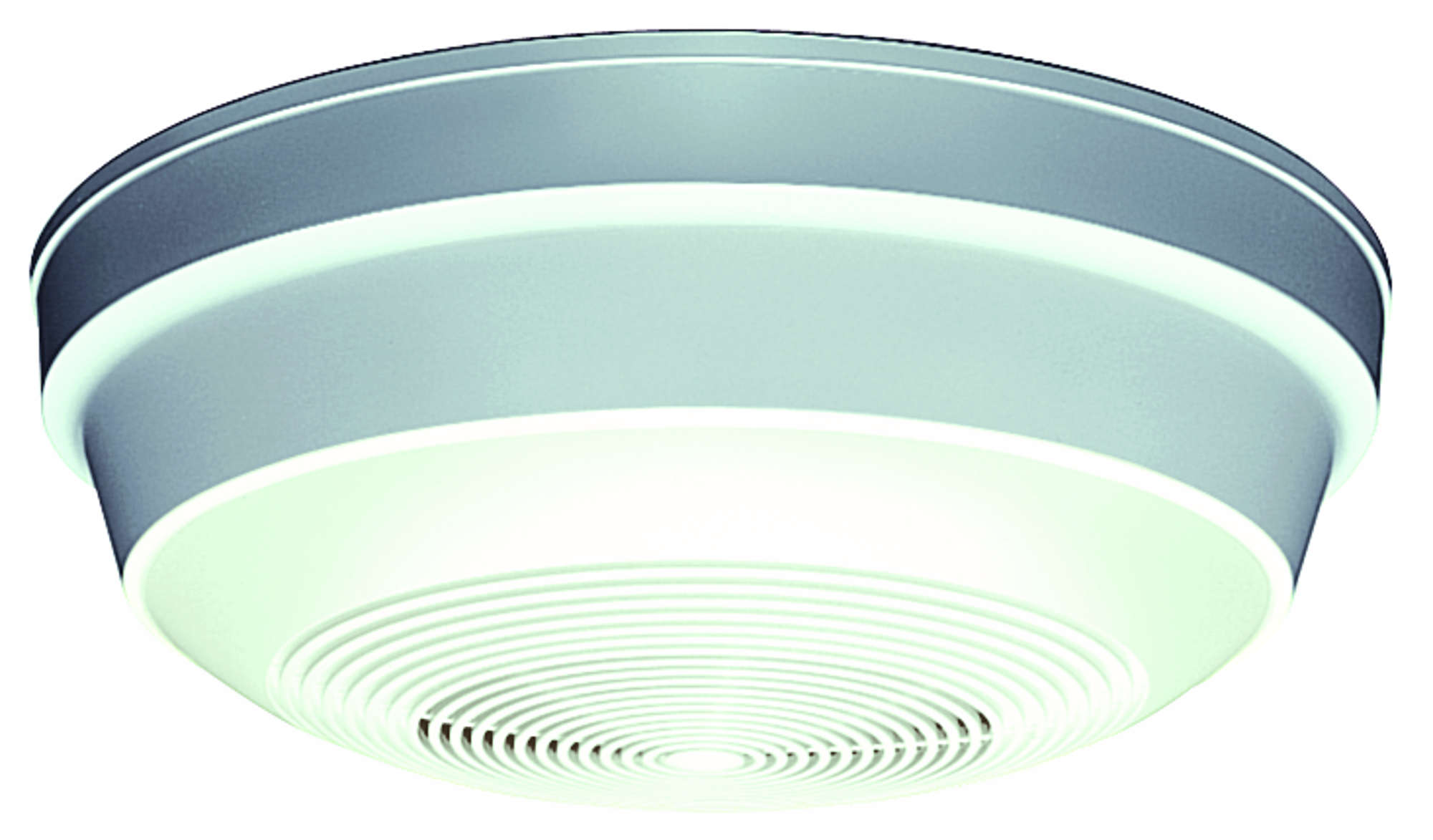

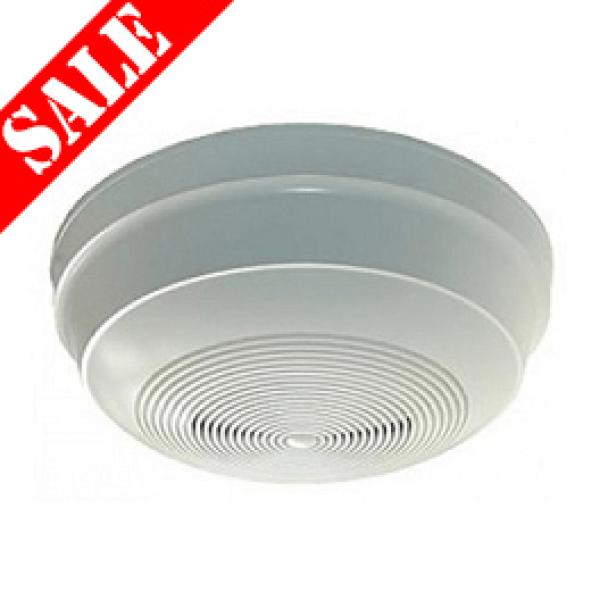

The TOA PC-2668 is a 6 watt, 100 volt line 5" surface mount ceiling speaker with a white finish.

Clearance line - limired stock.

The PC2668 speaker can be surface mounted (exposed installation) to the ceiling where flush mounting is impossible.

It can be easily installed with its spring catch method. Push-in connector allows quick wire connection, and speaker lines can be bridged by bridging terminals. The supplied bracket can be mounted to a flush-mount pull box.

  • 12 cm speaker
  • Exposed installation to the ceiling (surface mounting)
  • Easy installation with spring catches
  • Push-in terminals for speaker cable
  • In-/Out bridge connection
  • Mounting bracket for optional back box included



100V
List Ex VAT: £15.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency response

100 Hz - 16 kHz

Sensitivity (1 W, 1 m)

90 dB

Rated input (100 V)

6 W

Tappings

6 / 3 / 1.5 / 0.8 W (100 V), 3 / 1.5 / 0.8 / 0.4 W (70 V)

Speaker component

12 cm dynamic cone-type

Finish

ABS resin, off-white (RAL 9010 or equivalent)

Dimensions

260 x 202 mm (Ø x D)

Weight

0.82 kg
