LD Systems AMP 205 AV

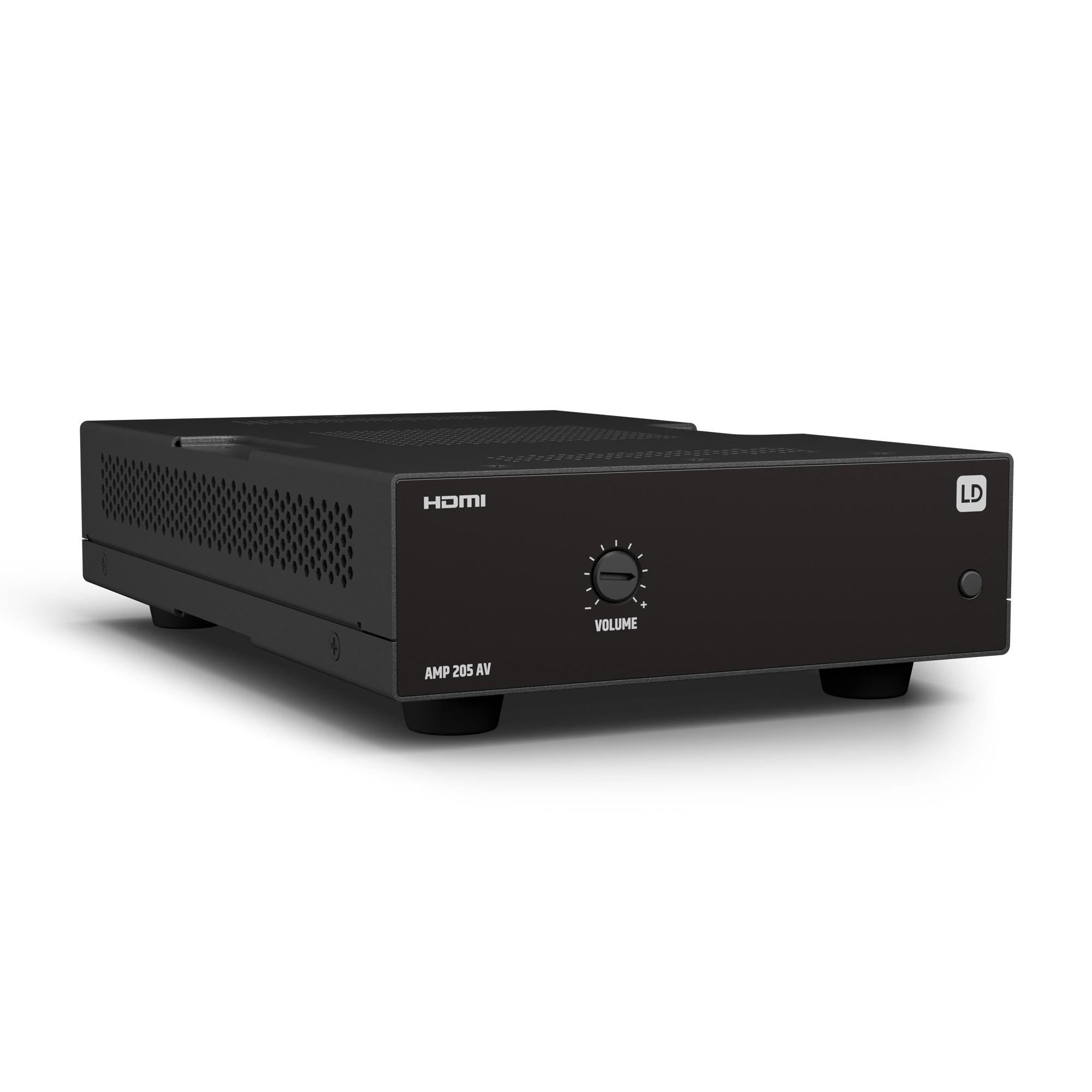

The LD Systems AMP 205 AV HDMI Audio De-Embedder & Amplifier offers two channels rated at 50W @ 4 Ohm and is the ideal professional amplifier for an AV system. The built in Audio De-Embedder extracts the audio from the HDMI source and delivers stereo audio to your loudspeakers whilst the HDMI pass though connection enables the video image to be connected easily to your display device.

The highly efficient 2 x 50W Class-D amplifier features 4 Ohm outputs and a user-friendly front panel, equipped with signal, clip, and protection LEDs.

Part of the TICA® series, it’s compact size (142 x 44 x 222) & passive the LD AMP205AV it to be installed discreetly almost anywhere using the included mounting plates. Alternatively, it can be fitted into 1/3 19 inch rack using the optional rack tray (TICA RK) alongside other TICA components for a bespoke system in minimal rack space.

The AMP 205 AV uses an external 24V power supply. Terminal block connections for the analogue outputs and GPIO connections make wiring easy.

Remote control connectivity for third-party devices lets you select between HDMI input and HDMI out (ARC). You can also adjust volume on either channel and put the power amplifier into standby mode at any time, ideal for when the amp is hidden away. Optional auto-standby saves power when no audio is running.

The perfect solution for professional installers and users looking to deliver higher performance audio for the video systems.

  • Professional mini amplifier with HDMI Audio de-embedder
  • HDMI In- and Out and stereo line outputs
  • 2 x 50W Class-D amplifier with low impedance outputs
  • Compact form factor and passive cooling
  • Remote source select, standby and volume control
  • External 100-240V power supply
  • Mounting plates for flexible inconspicuous installation, even above suspended ceilings
  • Auto standby to save power
  • Balanced line output and loudspeaker output on terminal blocks
  • User-friendly front panel with signal, clip and protection LEDs.
  • Optional rack tray for combining with other TICA® series products
  • Warranty: 5 Years
4ohms 1U 2ohm
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Line inputs

0

Line outputs

2 x Balanced line outputs, Pitch 3.81 mm terminal block (3-pin)

Loudspeaker outputs

2 with output mode selector (Stereo / High Power Mode)

Cooling

Convection

HDMI supported colour format

RGB, YUV420, YUV422, YUV444

Max. data rate

48 Gbit/s

Resolution range

Up to 4K2K 60Hz

Colour bit depth

8 bits per colour

Chroma Sampling

4 : 4 : 4

HDMI standards

HDCP 1,4 - 2,3, HDMI 2,1

HDMI Inputs

1 x female HDMI type A

HDMI Outputs

1 x female HDMI type A

Standby wake up threshold

7 seconds

Amplifier

Class D. Stereo, parallel, high-power modes

Amplifier Outputs

2-ch (STEREO) / 1-Ch (HPM)

Output Connector

4 - pin terminal block (pitch 5.08mm)

RMS Power (W)

1 x 100 W @ 2ohm (Continuous sine wave 1kHz 10sec, 4 ohm load), 2 x 50 W @ 4ohm (ST, PAR)

Minimum load impedance

2 Ohms (HPM mode), 4 Ohm (stereo and parallel mode)

Frequency response

15 Hz - 20 kHz (-0,5 dB)

Protection circuits

DC protection, over-current, Short circuit, thermal overload

Power Supply

External SMPS, 100 V AC - 240 V AC, 50 - 60 Hz

Power Supply Secondary

24 V DC

Power consumption

Max: 115W (sine 1kHz with 2 x 4-ohm load),
Idle: 6 W,
Standby: < 1 W

Construction

Plastic Front panel, Steel chassis

Dimensions (W x H x D) (height with rubber feet)

142 mm x 53 mm x 221.7 mm

Weight

1.76 kg

Accessories (included)

External SMPS, Mounting plates for surface mount applications, Terminal blocks for electrical connections.

DOWNLOADS

LD Systems AMP205AV User Manual

Related Products

LD Systems TICA RK
LD Systems TICA RK

Rack tray for TICA Series, IMA amps & RSMP Media Player.

Log In for Trade Prices.

see more
List Ex VAT: Contact Us
LD Systems RSMP
LD Systems RSMP

Radio streaming media player. FM/DAB/DAB+, MP3, Streaming, Bluetooth.

Log In for Trade Prices.

see more
List Ex VAT: Contact Us

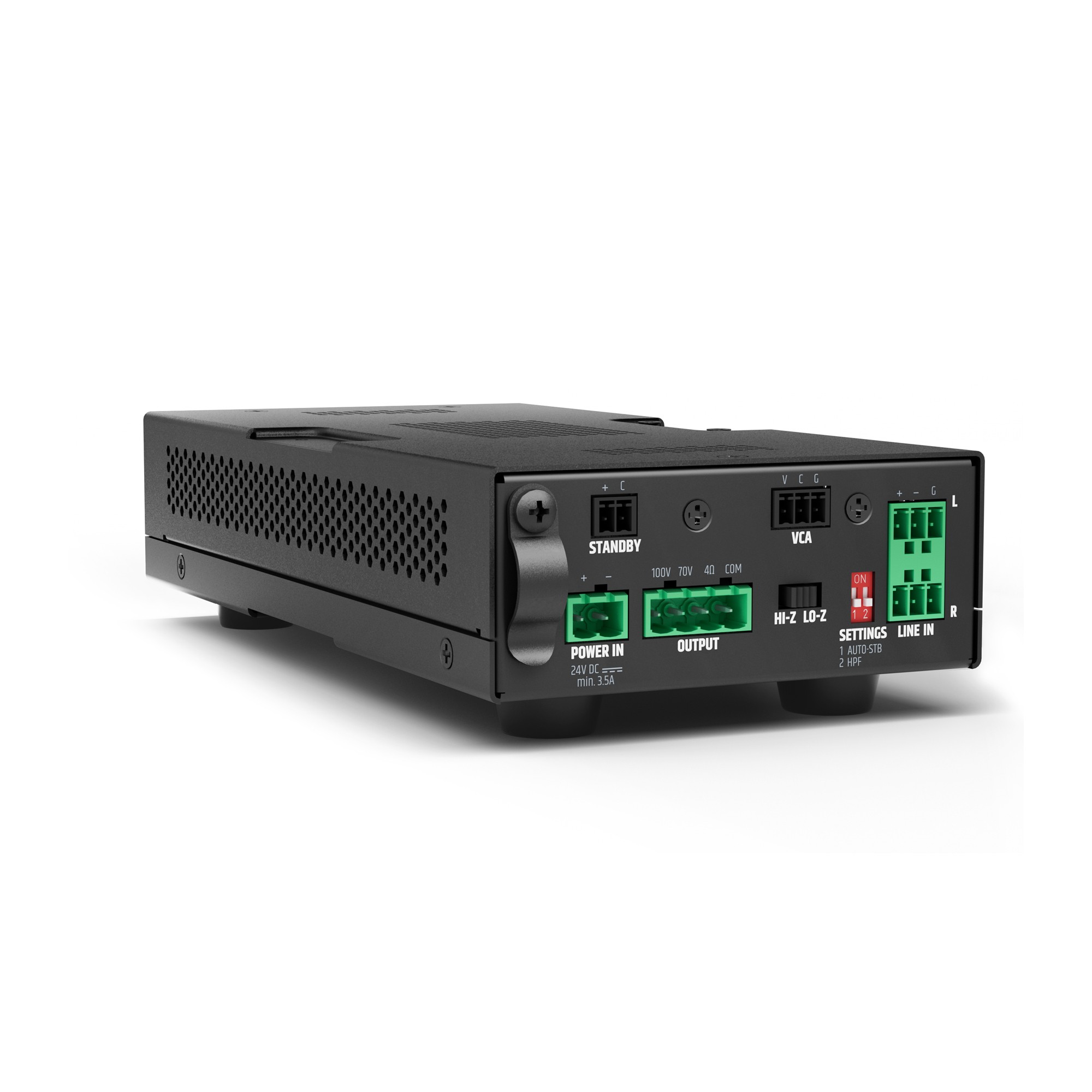

LD Systems AMP 106T
