LD Systems CE PB10

LD Systems CE PB10

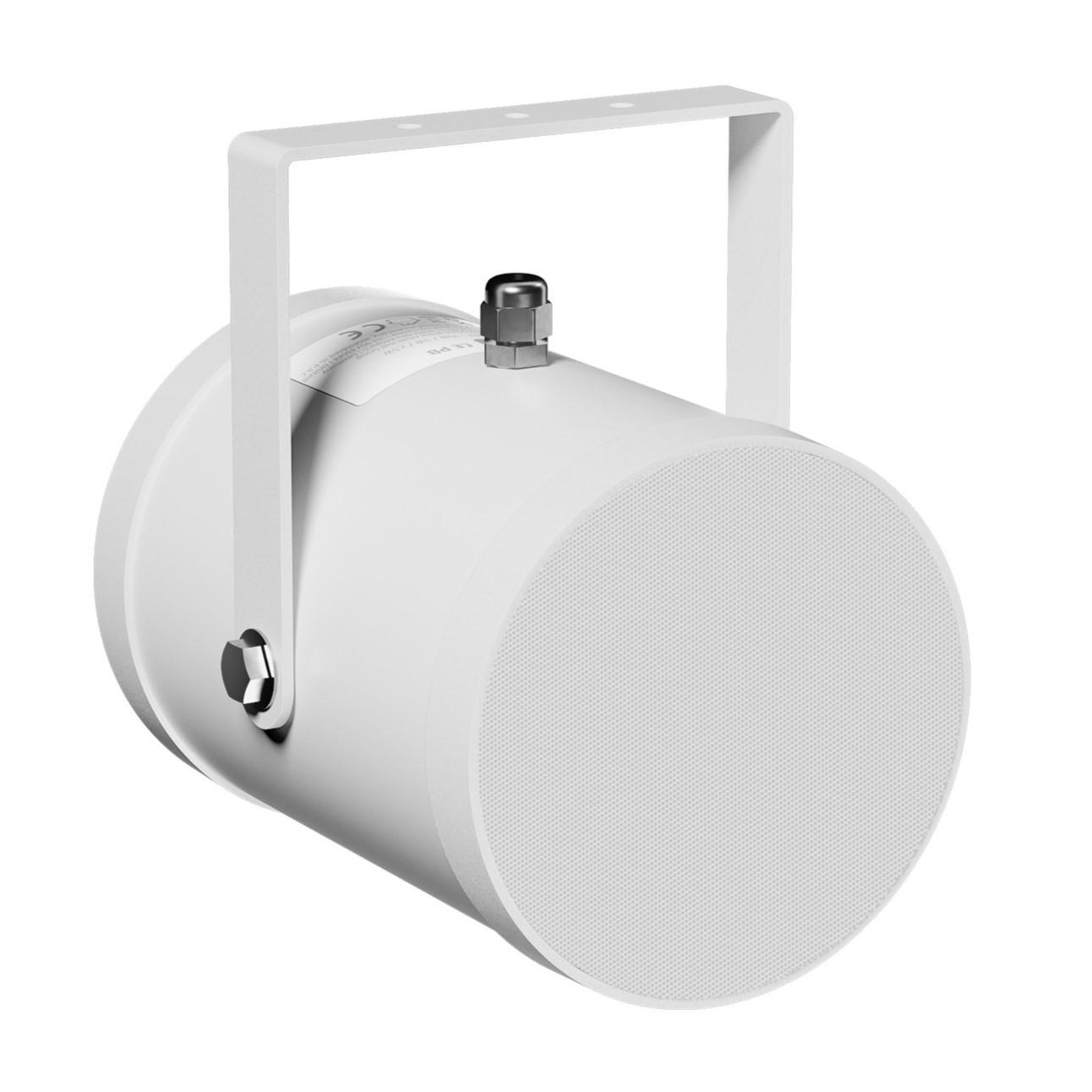

The LD Systems CE PB10 Bidirectional Projector Loudspeaker is rated at 10 watts and suitable only for 100V line commercial loudspeaker circuits.

Constructed from ABS with an aluminium grille and water resistant to IP55, ideal for demanding outdoor environments coverage in public spaces such as platforms, tunnels and passageways.

A built in U-shaped mounting bracket is provided for easy installation.

  • 10 W rated power
  • 100V Taps: 2.5 / 5 / 10 W
  • IP55 weatherproof
  • Built in mounting bracket
  • Warranty: 5 Years
100V IP55
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Low/mid Woofer dimensions

2 x 5 "

100 V Inputs

2.5 W / 5 W / 10 W

Frequency response

180 Hz - 16000 Hz

Sensitivity (1 W / 1 m)

86±3 dB

Max load

10 W

Protection class IP

55

Operating Temperature

-25 - 55 °C

Material

ABS plastic, Aluminium front grille (powder-coated)

Colour

White

Outer dimensions (Diameter X L)

138 mm x 200 mm

Weight

1.7 kg

DOWNLOADS

LD Systems CE PB10 User Manual
