Waves System My Video Player (VP330)

The Waves System My Video Player (VP330) 4K video player is ideal for musems, retail outlets and other information points.

The VP330 has all the amazing features of the VP320 but instead of  just one input contact to trigger playback, the VP330 has 1+8 input triggers to initiate playback from sensors, push buttons etc as well as 8 output triggers to control lights, motors etc.

VP330 is ideal for use in a lockdown system - perfect for schools, businesses and venues of all kinds that may need to lock down premises to protect people from an emergency event or threat. Please see our feature on Martyn's Law in our Tech Hub or our Lockdown Category for more information on this.

Playback of all video resolutions up to 4K is possible via the HDMI output and audio is also provided on line level, headphone and speaker outputs for complete flexibility.

Video playback can be initiated in several ways including autoplay (on power-up), TCP/IP or HTTP commands, serial link or by external triggers such as a sensor or push button. Playback at pre-set times is also possible by creating files using the scheduler software download from Waves System.

The MyVdeo Player can also be set to display a web page at the beginning or end of playback and theres also a command to power on / off a video projector. Subtitles can also be added to the video.

An infra-red remote control is supplied.

  • Automatic start at power on.
  • Triggering by dry contacts, by touch screen, by automation,
    in TCP and HTTP.
  • Perfect loop, random, continuous, according to a
    calendar, ...
  • On/Off management of video projectors.
  • Integrated audio amplification for close listening.
  • Controllable by web remote control.
  • Embedded administration console in the player for
    remote configuration and content updates.
  • Subtitle file management for on-the-fly changes.
  • Synchro between players.
  • Supervise your players remotely and update all your
    media with Wavespark, our cloud solution.
  • 4GB internal memory.
  • Up to 8 audio channels on USB and HDMI ports.
  • 1+8 input triggers
  • 8 output triggers
  • RS232 port
  • Warranty: 3 Years
1U SD USB
List Ex VAT: £499.09
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

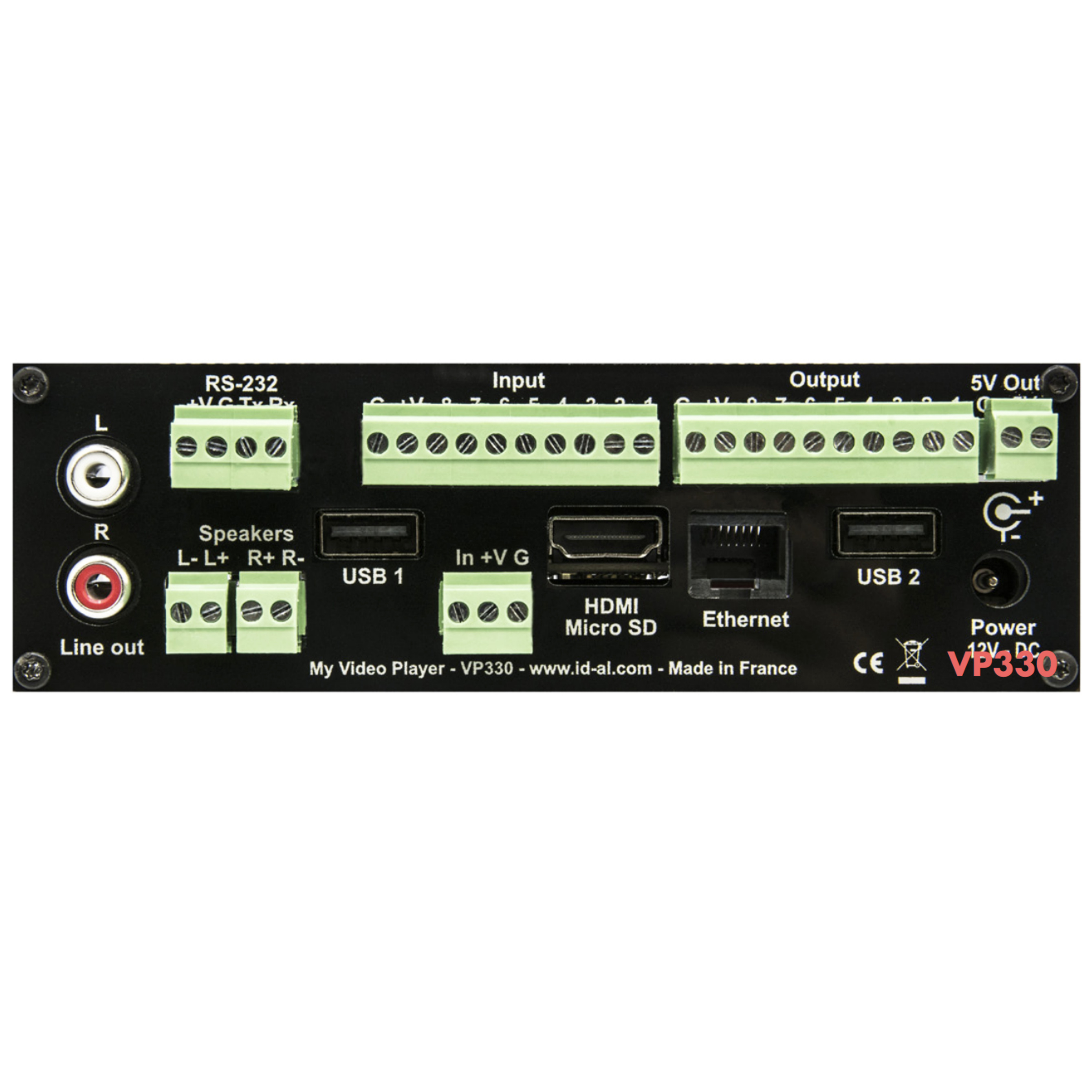

Interfacing and Connectivity:



Overview

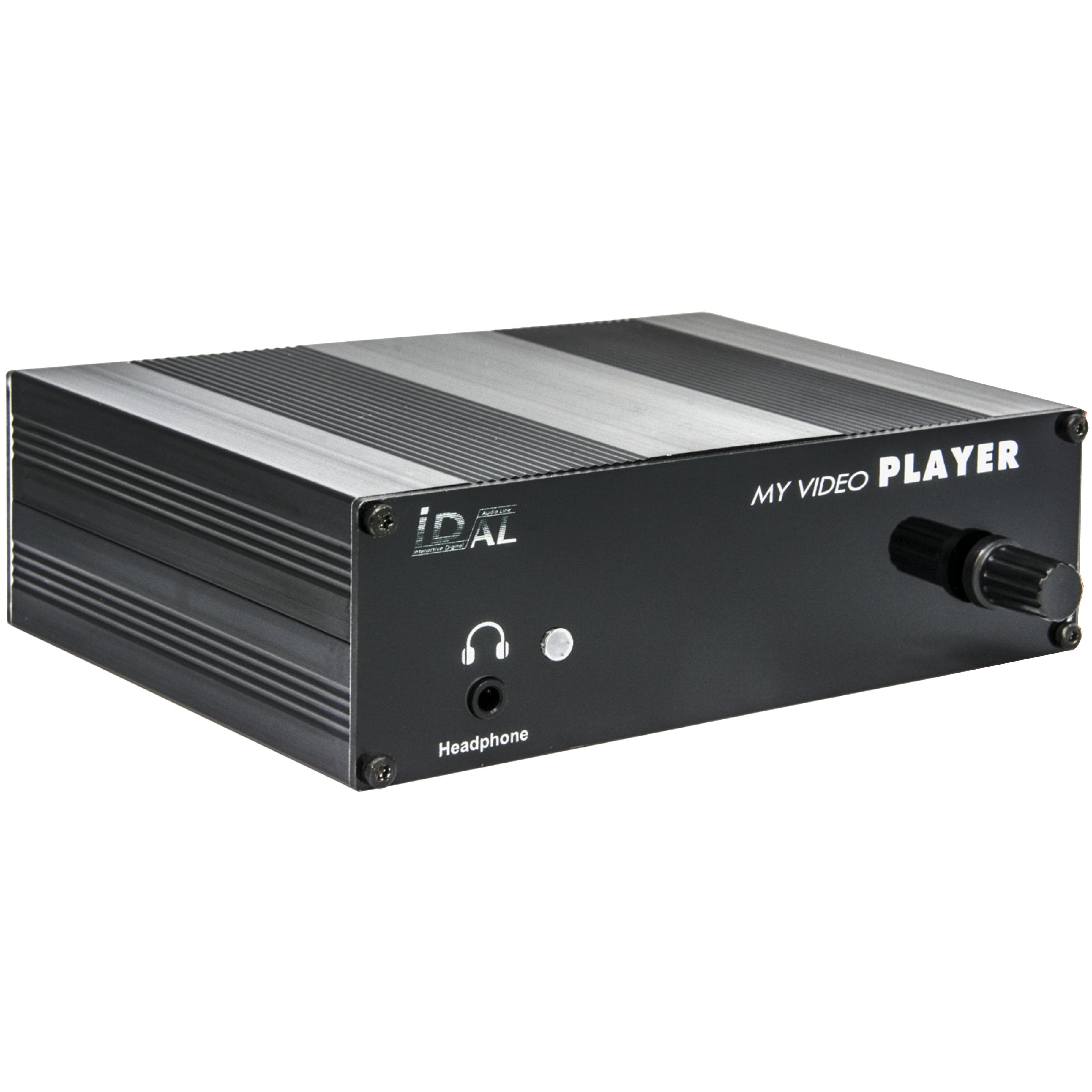

  • Status LED
  • Clickable knob (volume)
  • Infrared sensor – Protocol: NEC
  • 2 USB Host 2.0 High Speed (480 Mb/s), type-A receptacles, compatible:
    • USB Mass Storage
    • USB HID mouse, keyboard and multi-touch screen
  • microSD card slot
  • 10/100 Mbps Ethernet, RJ45 connector
  • HDMI audio/video output, type-A (standard) receptacle connector (HDMI 2.0b, HDR10 and CEC)
  • Unbalanced line-level stereo audio output on standard RCA connectors
  • Headphone stereo audio output on a standard 3.5 mm (TRS) jack
  • Class D amplified speaker stereo audio output on 3.81 mm pluggable terminal blocks
  • A standalone configurable opto-isolated input contact on a 3.81 mm pluggable terminal block (typical debounce time: 25 ms)
  • 1 power supply output on a pluggable terminal block
  • External DC power supply chassis socket – Plug Ø 2.1 mm / 5.5 mm

Output Video Formats Supported
  • 4K Ultra HD (3840 × 2160), 24/25/30/50/60 Hz
  • 1080p (1920 × 1080), 24/50/60 Hz
  • 1080i (1920 × 1080), 50/60 Hz
  • 720p (1280 × 720), 50/60 Hz
  • 576p and 576i (720 × 576), 50 Hz
  • 480p and 480i (720 × 480), 60 Hz
  • Main progressive scan VESA resolutions: see manual

Multimedia Container Formats Supported

Video
.mp4 (MPEG-4) / .mkv (Matroska) / .mov (QuickTime)

.jpg or .jpeg / .png / .bmp

Audio
.wav / .mp3 (MPEG-Layer 3) / .m4a (MPEG-4 Audio) / .ogg / .mka (Matroska)

Subtitles
.srt (SubRip) /.ssa (SubStation Alpha) /.ass (Advanced SubStation Alpha) /.vtt (WebVTT – Web Video Text Tracks) /.ttml (Timed Text Markup Language Document)

Multimedia Codecs Supported

Video

H.265 HEVC MP-10@L5.1 up to 4K×2K@60fps

VP9 Profile-2 up to 4K×2K@60fps

H.264 AVC HP@L5.1 up to 1080p@60fps and 4K×2K@30fps



JPEG (ISO/IEC-10918) / PNG / BMP

Audio

  • LPCM: up to 8 channels, 16/24-bit, up to 96kHz
  • MP3: MPEG-1/2 Audio Layer III, mono/stereo, up to 48kHz, CBR (Constant Bit Rate) or VBR (Variable Bit Rate), with or without ID3v1/2 tags
  • AAC-LC: Advanced Audio Coding, up to 8 channels, up to 96kHz
  • HE-AAC-LC: High-Efficiency Advanced Audio Coding, mono/stereo, up to 96kHz
  • Vorbis: up to 8 channels, up to 96kHz
  • Opus: up to 8 channels, up to 48kHz
  • FLAC: up to 8 channels, 16/24-bit, up to 96kHz
  • DTS: Digital Theater System, HDMI passthrough
  • AC3 Dolby Digital: HDMI passthrough or 6 channels, up to 48kHz
  • E-AC3 Dolby Digital+: HDMI passthrough

Subtitles

  • TXT : Text
  • XML : Extensible Markup Language

Other File Formats Supported
  • TM2 (.tm2): timestamped programming file (scheduler.tm2) – Scheduler V2 file format
  • TXT (.txt): text files for the serial link (serial.txt) and the FTP configuration (ftpset.txt) – raw text format (only printable 7-bit ASCII characters) with CR/LF, LF or CR end of line characters

Embedded web browser
  • Based on Chromium v92.0.4515.159
  • JavaScript API to control the player
  • Web page resolution: 1920×1080

Storage Devices
  • File systems supported:
    • FAT32 (read/write)
    • exFAT (read/write)
    • NTFS (read/write)
    • ext2/3/4 (read/write)
  • Internal storage: 4 GB
  • Accepted storage device types:
    • microSDSC cards
    • microSDHC cards
    • microSDXC cards
    • USB flash drives

Network
  • Embedded web server:
    • Serve HTML5 / JavaScript pages
    • Remote administration:
      • Configuration
      • Control
      • Content update
      • Maintenance
    • Control the player through a REST API
  • Embedded PJLink server to turn on and turn off a video projector
  • Embedded FTP server for remote content update
  • Embedded TCP/IP server for player control
  • Embedded NTP client to synchronize the clock
  • IPv4 and IPv6
  • IPv4: static or DHCP address
  • Embedded mDNS identification service (Zeroconf)
  • Multicast “Start Sync” facilities over UDP

Audio Amplifier
  • Headphone output:
    • Maximum output power:
      • 2 × 15 mW for 32 Ω
      • 2 × 30 mW for 16 Ω
    • THD+N:
      • 0.014 % for 2 × 5 mW, 32 Ω, 1 kHz
      • 0.016 % for 2 × 10 mW, 32 Ω, 1 kHz
      • 0.022 % for 2 × 10 mW, 16 Ω, 1 kHz
      • 0.028 % for 2 × 20 mW, 16 Ω, 1 kHz
  • Speaker output:
    • 2 × 8 W – 8 Ω, THD+N = 1 %, 1 kHz
    • 2 × 10 W – 8 Ω, THD+N = 10 %, 1 kHz
    • 2 × 15 W – 4 Ω, THD+N = 1 %, 1 kHz
    • 2 × 19 W – 4 Ω, THD+N = 10 %, 1 kHz

Miscellaneous
  • Nominal voltage: 12 V DC - 3.45A
  • Timekeeping when the player is not powered: up to 2 months
  • Operating ambient temperature: 0 to +45 °C
  • Storage temperature: -20 to +60 °C
  • Width: 140 mm - 1/3 of a 19-inch rack / Height: 43 mm - 1U
  • Depth (with terminal block connectors): 136 mm
  • Weight: 462g

DOWNLOADS

Waves System My Video Player (VP320 & VP330) Datasheet
Waves System My Video Player (VP330) User Manual
